Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 334646 M6-20

334646 M6-20

334646 M6-20 334646 M6-20 334646 M6-20

334646 M6-20

Hoffmann Group
Артикул: 334646 M6-20
В наличии
В корзину
Описание
Характеристики
BD Body diameter
55 mm
BD Body diameter 2
50 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0310
DCONWS Diameter
31 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
MKG00502085
FamilyProducts

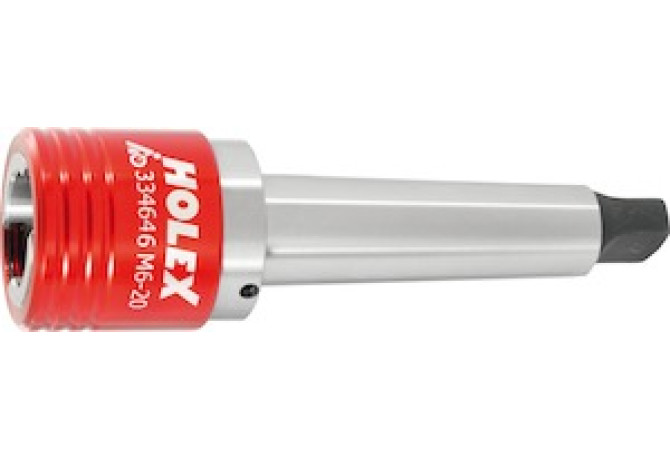

HOLEX Quick-change tapping head
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
50 mm
LB Length 2
14.5 mm
LF Functional length
71 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0310
LOC-01 DCONWS Diameter
31 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB03100105
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00502085
LPR Protruding length
71 mm
LSCX Clamping length maximum
35 mm
Name Identifying order number
334646 M6-20
OAL Overall length
188.5 mm
WT Weight of item
1.3 kg
