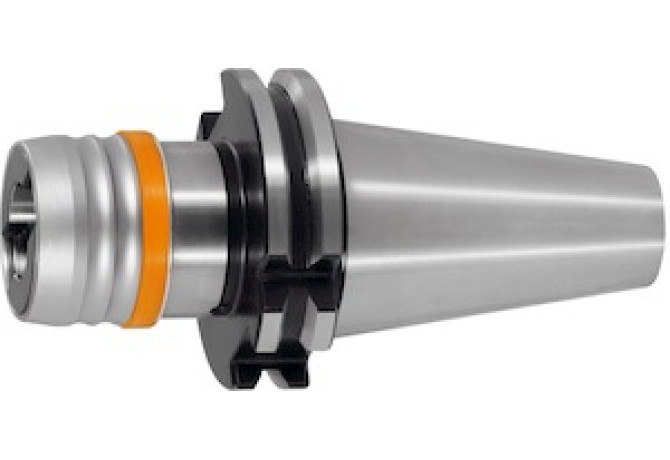

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 334638 M3-12

334638 M3-12

334638 M3-12 334638 M3-12 334638 M3-12

334638 M3-12

Hoffmann Group
Артикул: 334638 M3-12
В наличии
В корзину
Описание
Характеристики
BD Body diameter
38 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0190
DCONWS Diameter
19 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
SKG05001085
FamilyProducts
GARANT Quick-change tapping chuck
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
43.11 mm
LF Functional length
62.21 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0190
LOC-01 DCONWS Diameter
19 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB01900105
LOC-02 DCONWS Diameter
19 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HOG-GEW1
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001085
LPR Protruding length
62.21 mm
LSCX Clamping length maximum
21.5 mm
Name Identifying order number
334638 M3-12

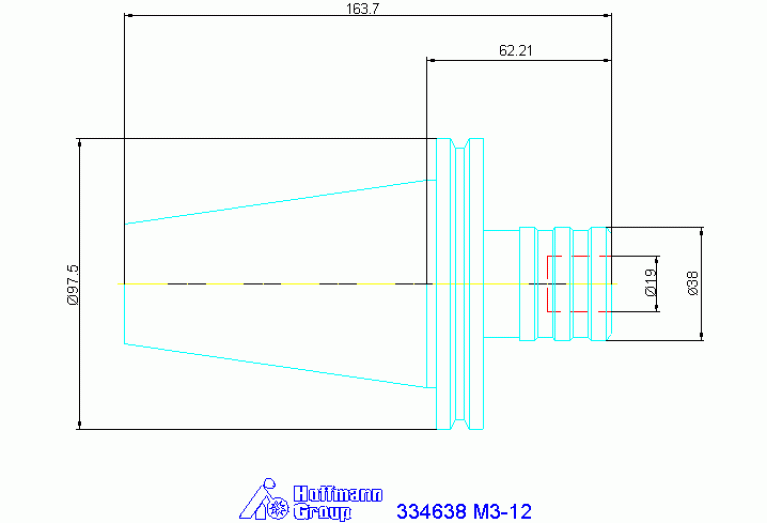

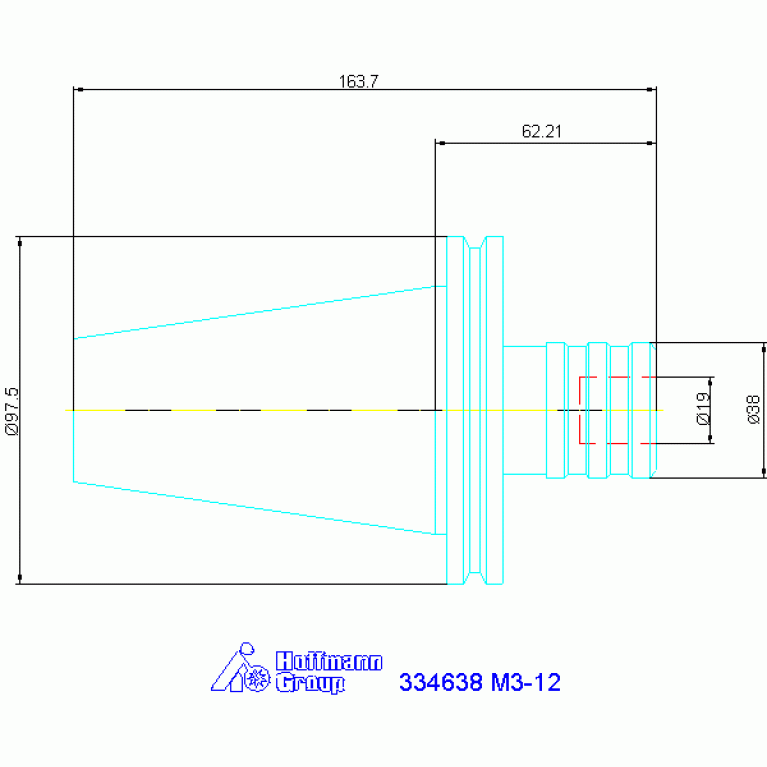

OAL Overall length
163.7 mm
WT Weight of item
3.1 kg
