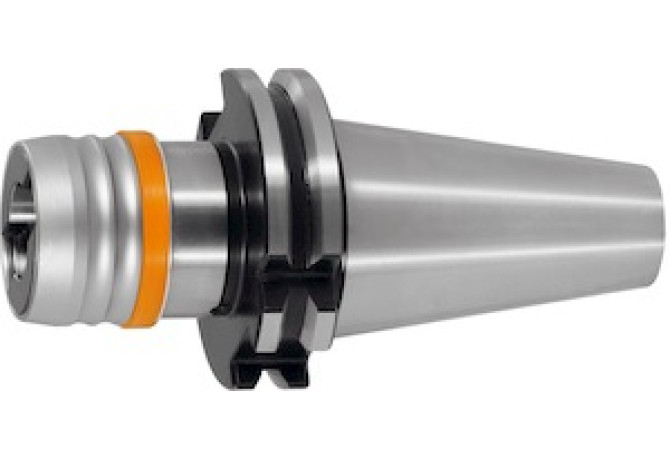

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 334630 M14-33

334630 M14-33

334630 M14-33 334630 M14-33 334630 M14-33

334630 M14-33

Hoffmann Group
Артикул: 334630 M14-33
В наличии
В корзину
Описание
Характеристики

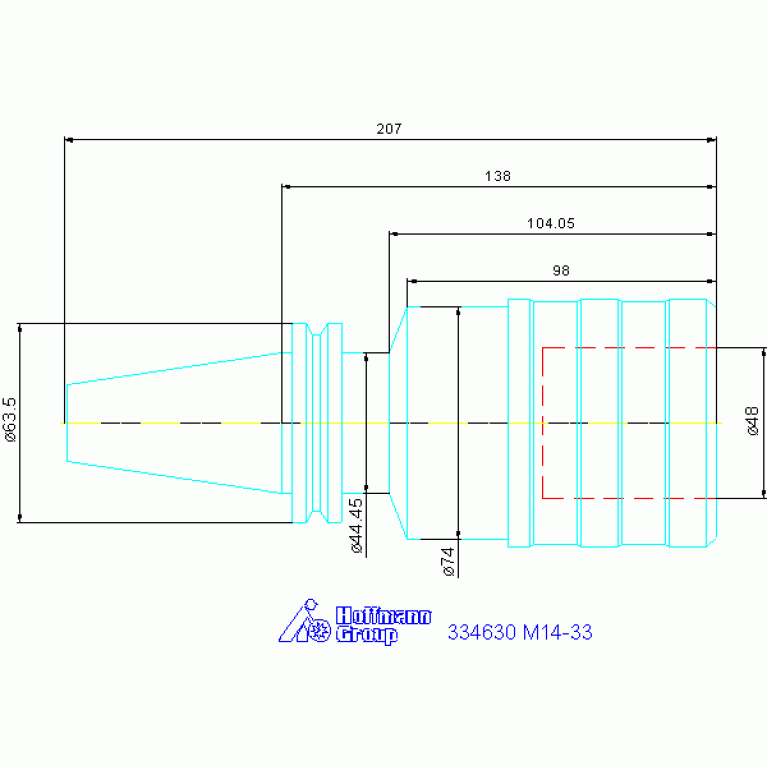

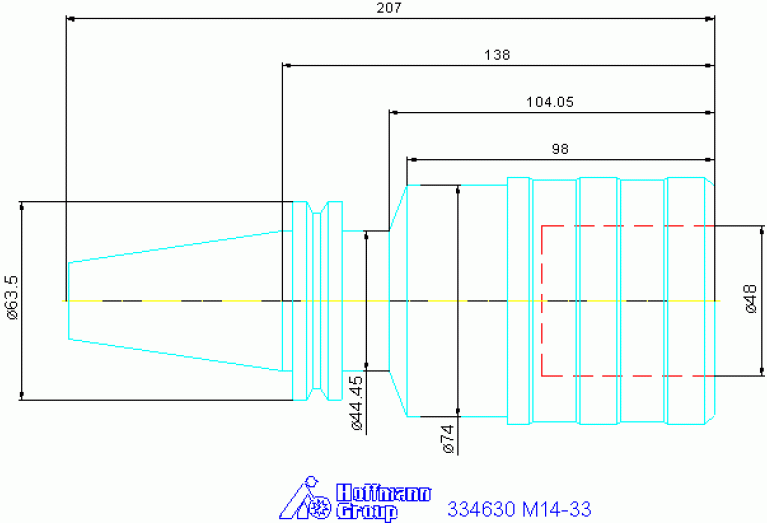

BD Body diameter
79 mm
BD Body diameter 2
74 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SWB
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0480
DCONWS Diameter
48 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63.5 mm
DIN
SKG04001195
FamilyProducts
GARANT Quick-change tapping chuck
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
138 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SWB Quick change adapter BILZ
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0480
LOC-01 DCONWS Diameter
48 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB04800105
LOC-02 DCONWS Diameter
48 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HOG-GEW3
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001195
LPR Protruding length
138 mm
LSCN Clamping length minimum
0 mm
LSCX Clamping length maximum
55 mm
Name Identifying order number
334630 M14-33
OAL Overall length
207 mm
WT Weight of item
2.7 kg
