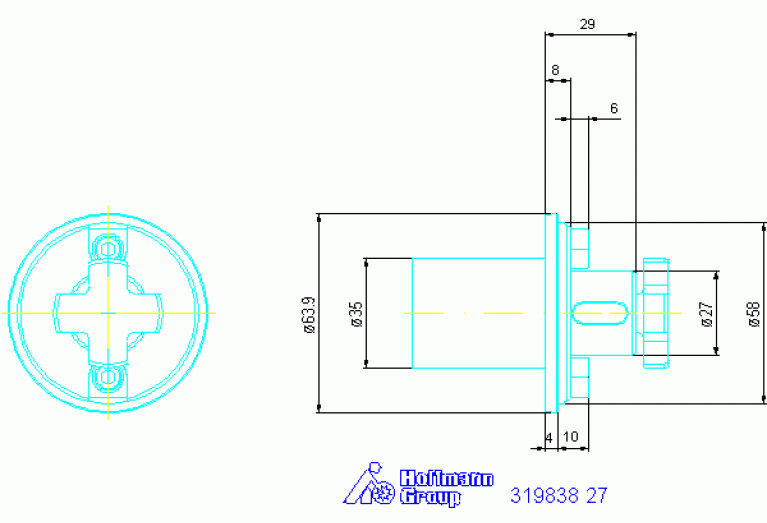

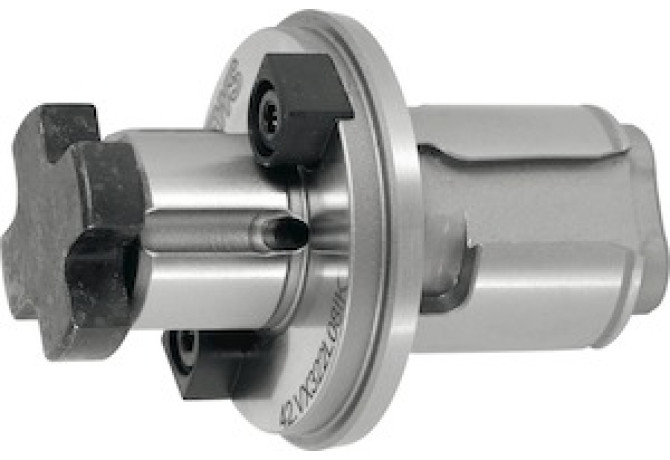

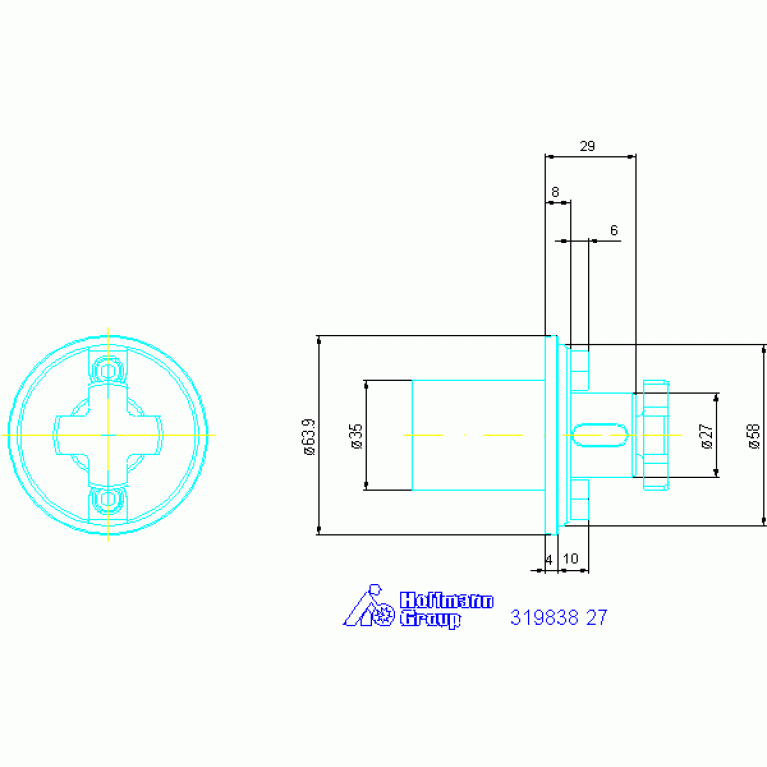

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 319838 27

319838 27

319838 27 319838 27 319838 27

319838 27

Hoffmann Group
Артикул: 319838 27
В наличии
В корзину
Описание
Характеристики
BD Body diameter
58 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0270
DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63.9 mm
DIN
EWC00400215
FamilyProducts
Axial milling cutter spigot VARIA VX4
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
4 mm
LB Length 2
0 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02700200
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
EWC EWS Connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
EWC00400215
LPR Protruding length
29 mm
LSCX Clamping length maximum
21 mm
Name Identifying order number
319838 27
OAL Overall length
71.5 mm
WT Weight of item
0.53 kg
