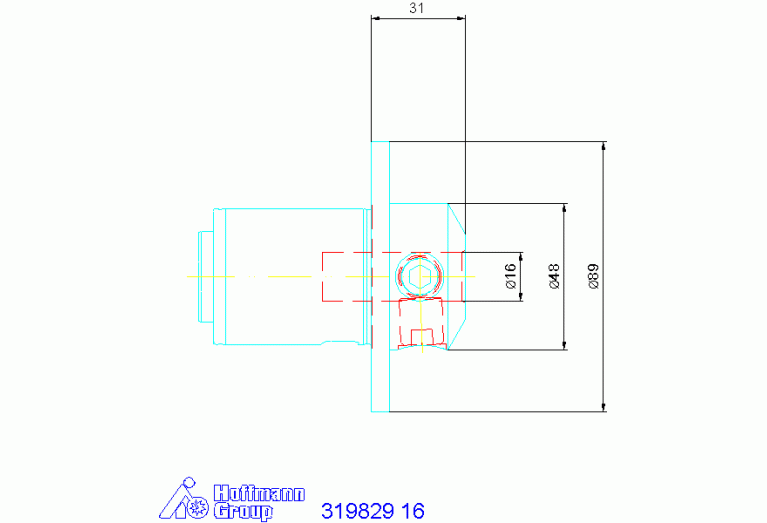

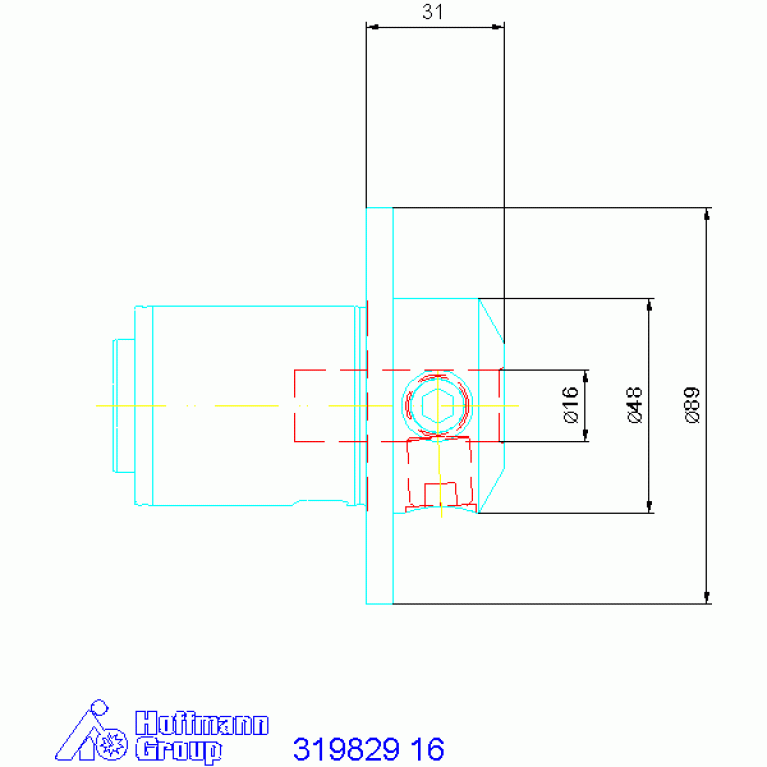

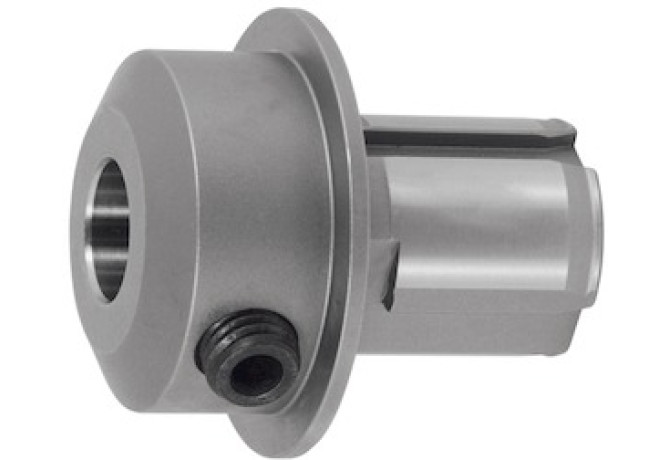

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 319829 16

319829 16

319829 16 319829 16 319829 16

319829 16

Hoffmann Group
Артикул: 319829 16
В наличии
В корзину
Описание
Характеристики
BD Body diameter
48 mm
CCFWS Connection code form
13
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
89 mm
DIN
EWC00500115
FamilyProducts
Indexable drill toolholder VARIA
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
25 mm
LOC-01 CCFWS Connection code form
13
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01601305
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
EWC EWS Connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0050
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
EWC00500115
LPR Protruding length
31 mm
LSCX Clamping length maximum
47 mm
Name Identifying order number
319829 16
OAL Overall length
88 mm
WT Weight of item
0.591 kg
