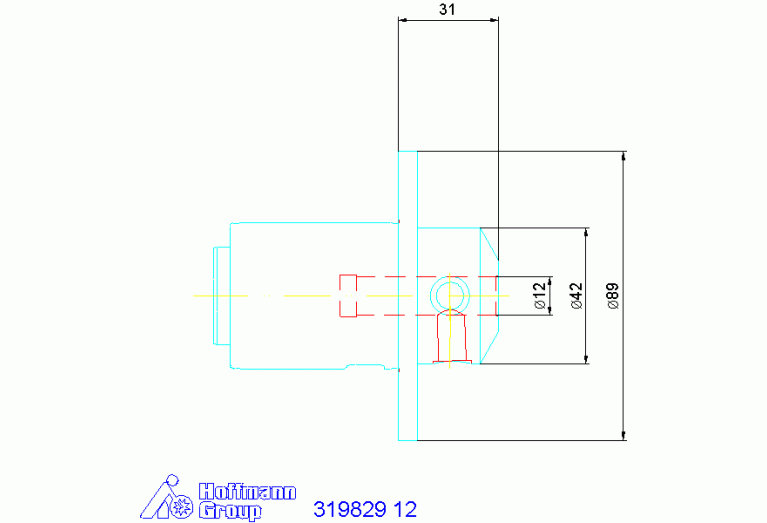

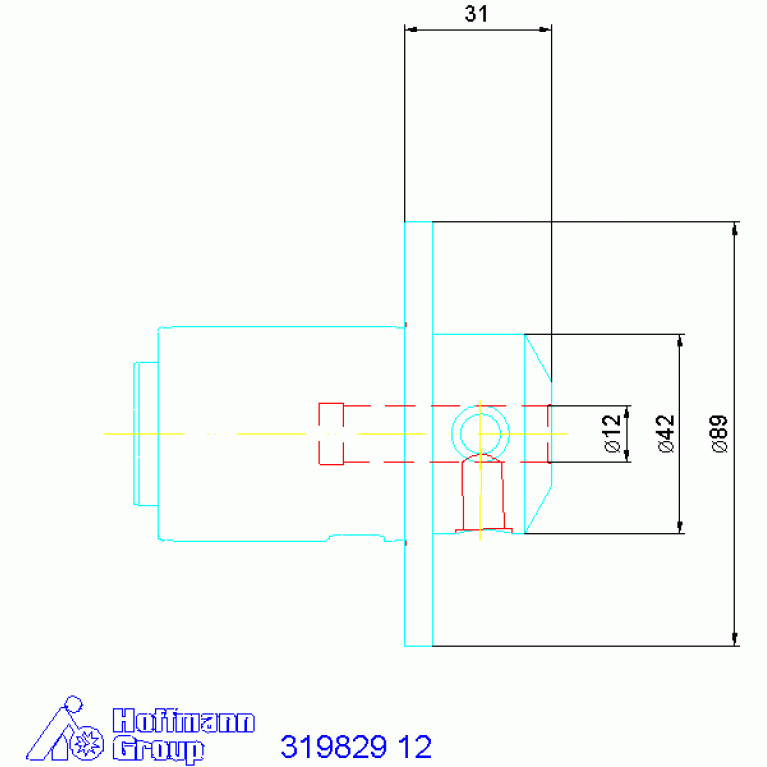

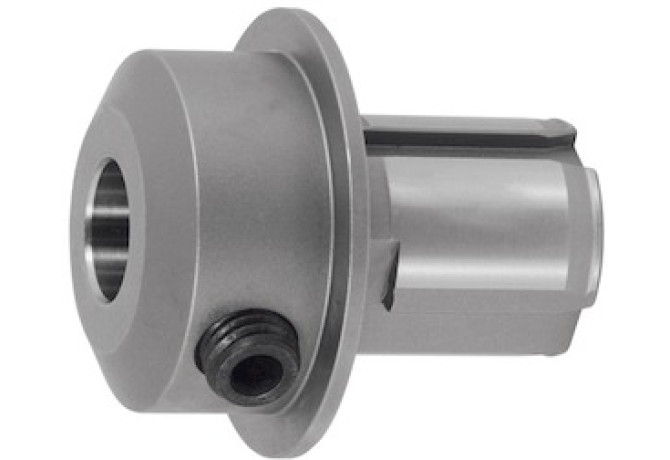

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 319829 12

319829 12

319829 12

Hoffmann Group

Артикул: 319829 12

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

CCFWS Connection code form

13

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

0

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0120

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

89 mm

DIN

EWC00500115

FamilyProducts

Indexable drill toolholder VARIA

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

25 mm

LOC-01 CCFWS Connection code form

13

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201305

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

EWC EWS Connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

EWC00500115

LPR Protruding length

31 mm

LSCX Clamping length maximum

49 mm

Name Identifying order number

319829 12

OAL Overall length

88 mm

WT Weight of item

0.544 kg
