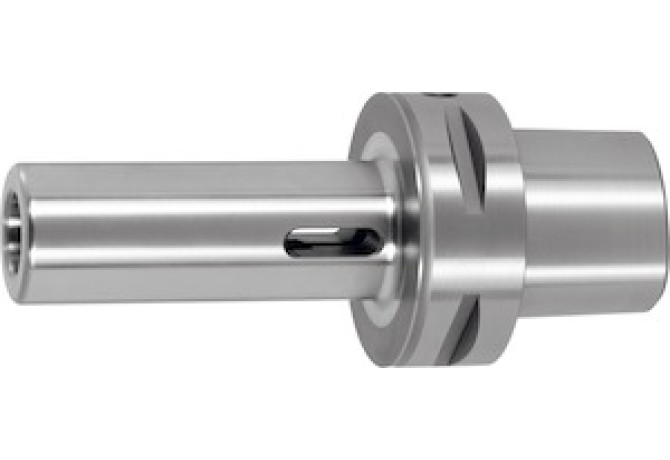

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 308564 4

308564 4

308564 4 308564 4 308564 4

308564 4

Hoffmann Group
Артикул: 308564 4
В наличии
В корзину
Описание
Характеристики
BD Body diameter
48 mm
CCFWS Connection code form
21
CCSWS Connection code style
5
CCTWS Connection code type
MKG
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0040
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
PSC06300195
FamilyProducts
GARANT Reducing sleeve for MT shank with tang
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
130.5 mm
LF Functional length
155 mm
LOC-01 CCFWS Connection code form
21
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
MKG Morse taper
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0040
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
MKG00602085
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HOG-MKB6
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PSC06300195
LPR Protruding length
155 mm
Name Identifying order number
308564 4

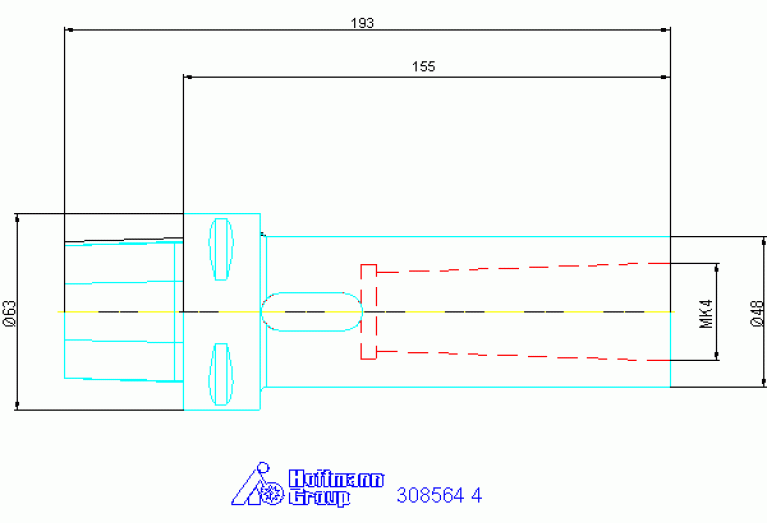

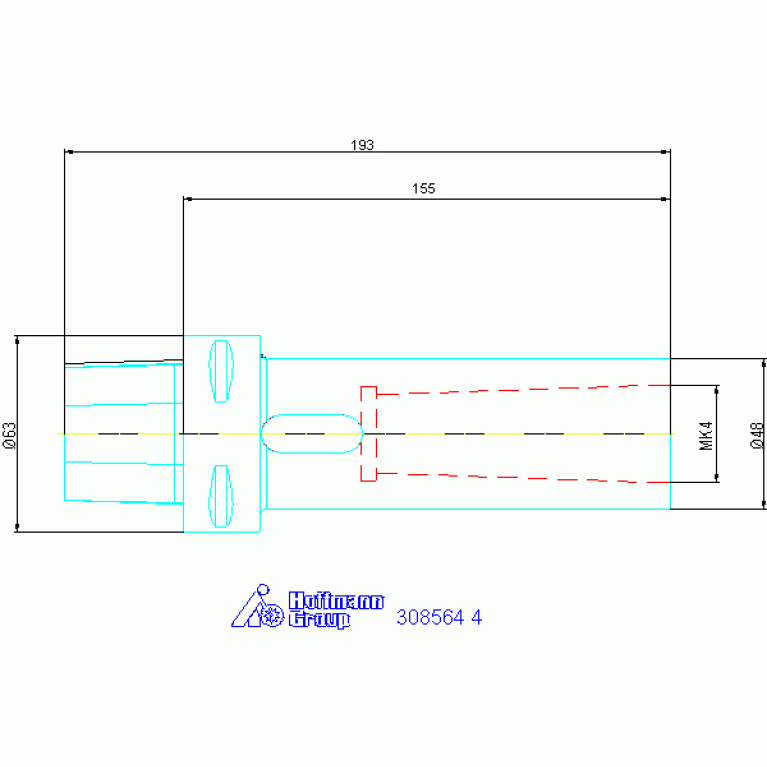

OAL Overall length
193 mm
WT Weight of item
1.88 kg
