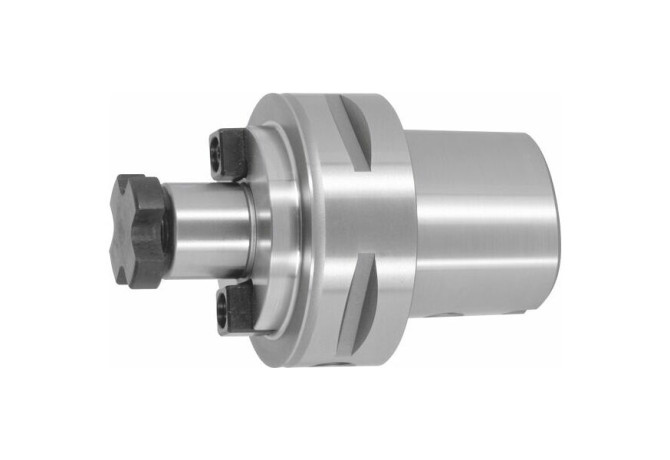

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 308546 22

308546 22

308546 22 308546 22 308546 22

308546 22

Hoffmann Group
Артикул: 308546 22
В наличии
В корзину
Описание
Характеристики

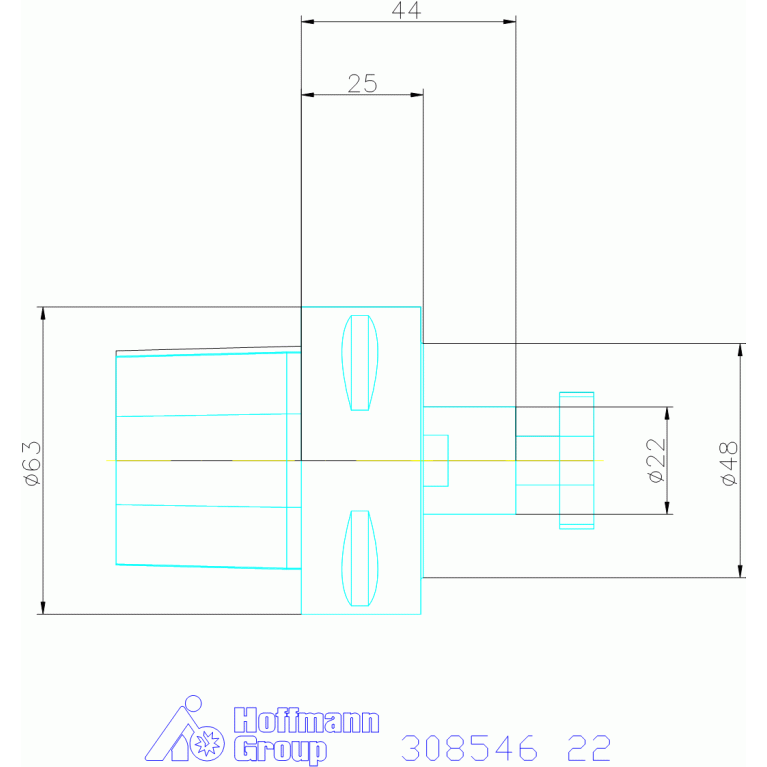

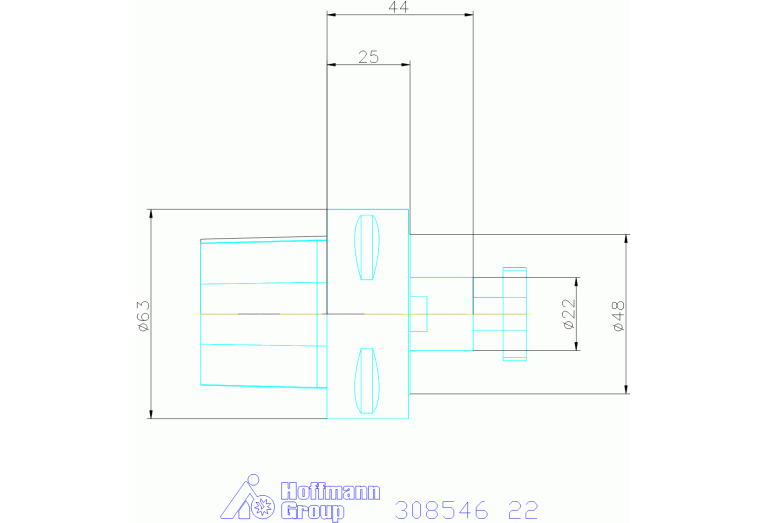

BD Body diameter
48 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
PSC06300195
FamilyProducts
GARANT Face mill arbor with cooling channel bores
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
25 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02200200
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PSC06300195
LPR Protruding length
25 mm
LSCN Clamping length minimum
18.4 mm
LSCX Clamping length maximum
19 mm
Name Identifying order number
308546 22
OAL Overall length
82 mm
WT Weight of item
1.2 kg
