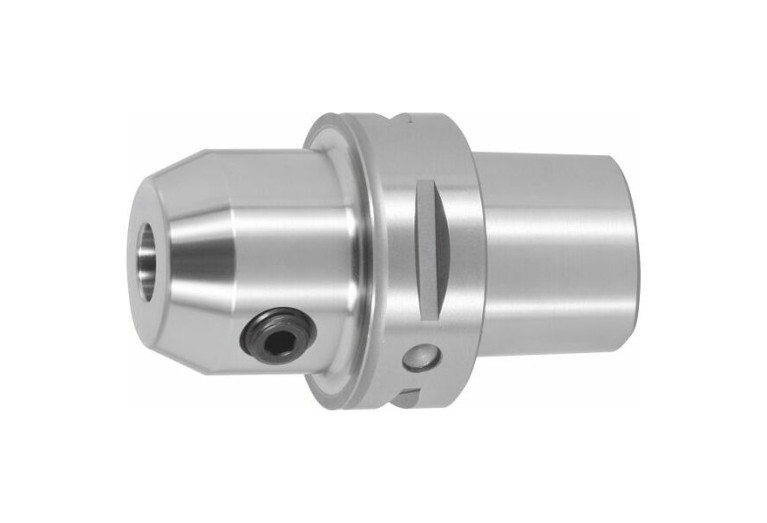

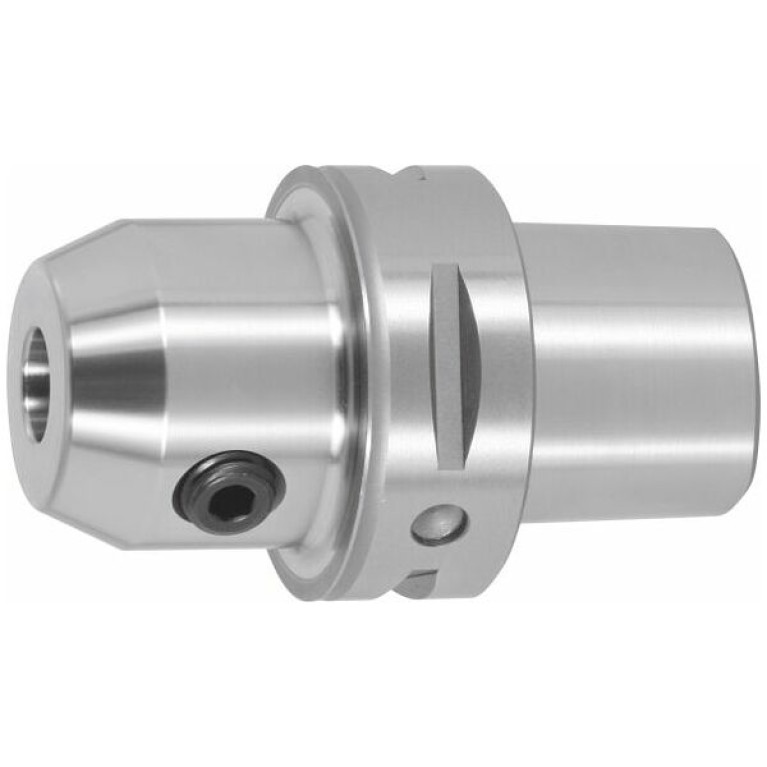

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 308503 18

308503 18

308503 18 308503 18 308503 18

308503 18

Hoffmann Group
Артикул: 308503 18
В наличии
В корзину
Описание
Характеристики
BD Body diameter
49.5 mm
BD Body diameter 2
49.5 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0180
DCONWS Diameter
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
80 mm
DIN
PSC08000195
FamilyProducts
GARANT Sidelock arbors
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0180
LOC-01 DCONWS Diameter
18 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01800115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PSC08000195

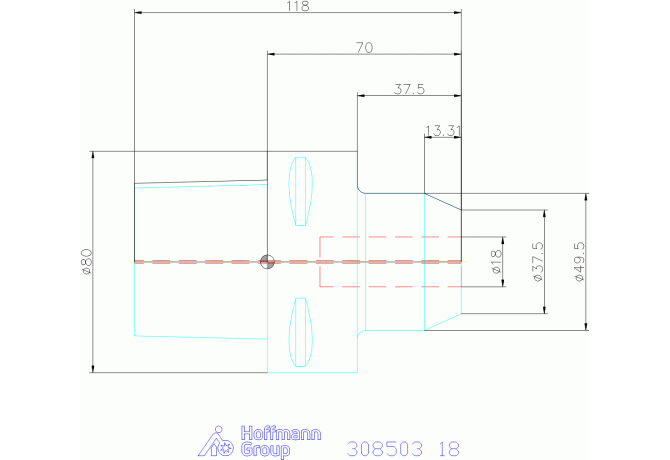

LPR Protruding length
70 mm
LSCX Clamping length maximum
51 mm
Name Identifying order number
308503 18
OAL Overall length
118 mm
TA Taper angle
25 Degree
WT Weight of item
2.2 kg
