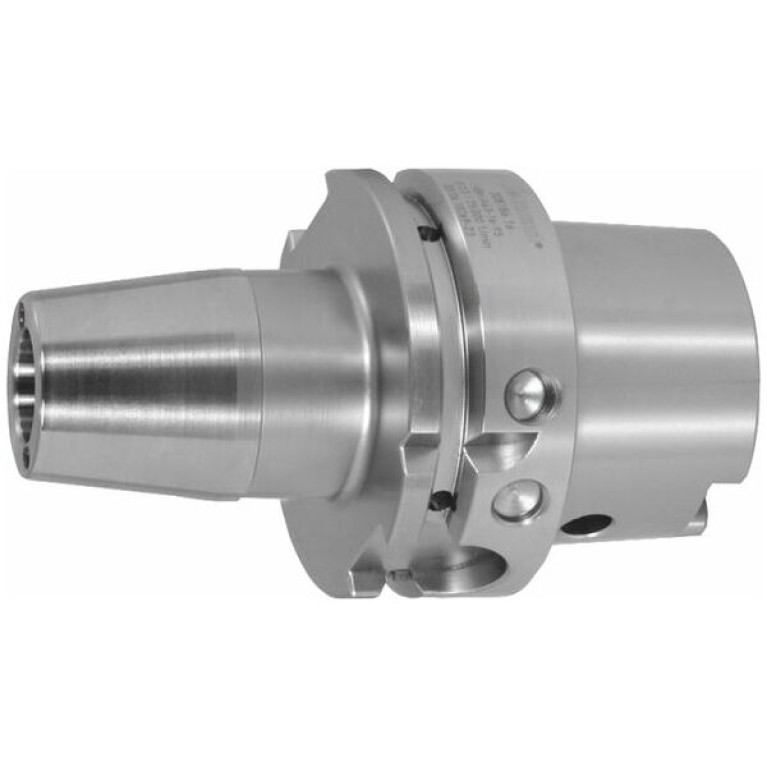

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 308165 25

308165 25

308165 25 308165 25 308165 25

308165 25

Hoffmann Group
Артикул: 308165 25
В наличии
В корзину
Описание
Характеристики

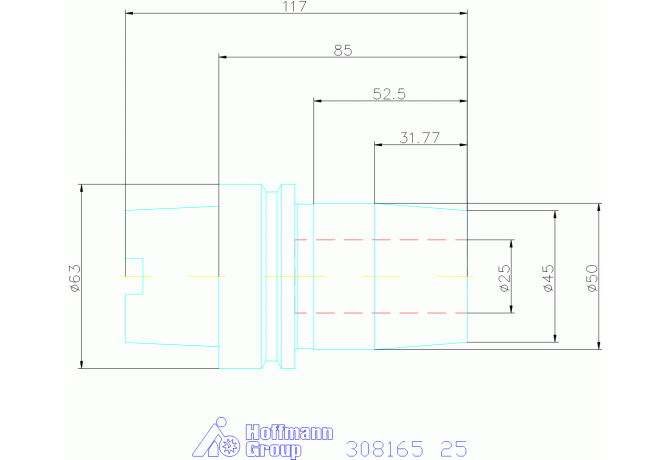

BD Body diameter
45 mm
BD Body diameter 2
50 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
8 - Axial concentrical or peripheral/decentralized adjustable
CZCWS Connection size code
0250
DCONWS Diameter
25 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts
GARANT Shrink-fit chuck with cooling channel bore
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
59 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
85 mm
LSCX Clamping length maximum
59 mm
Name Identifying order number
308165 25
OAL Overall length
117 mm
WT Weight of item
1.24 kg
