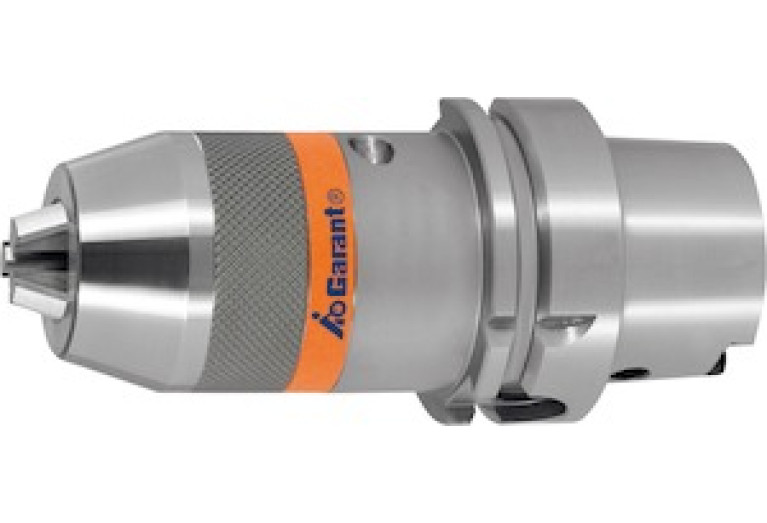

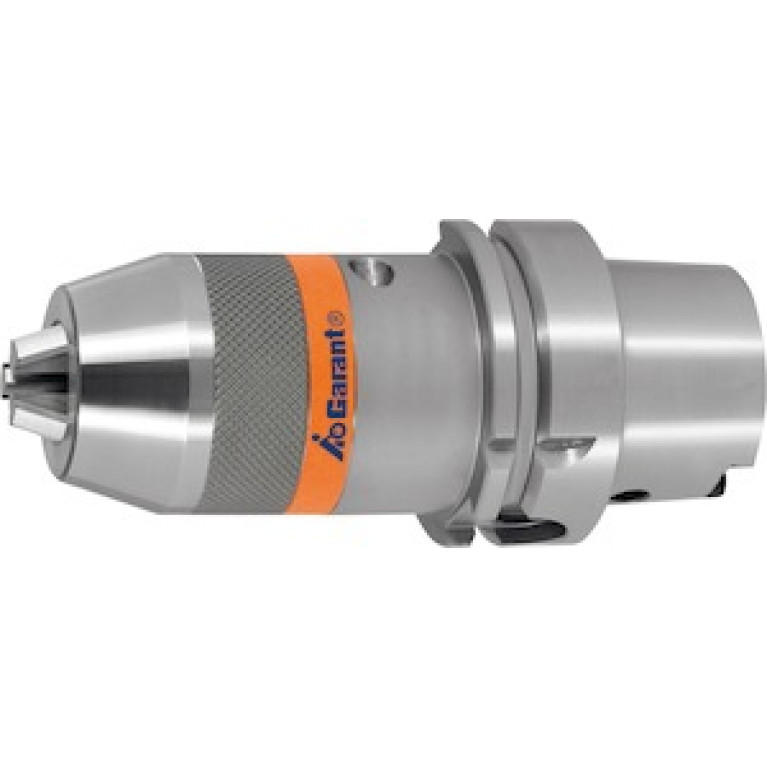

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 307740 2,5-16

307740 2,5-16

307740 2,5-16

Hoffmann Group

Артикул: 307740 2,5-16

В наличии

В корзину

Описание

Характеристики

BD Body diameter

36 mm

BD Body diameter 2

50 mm

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

0

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DCONWS Diameter

2.5 mm

DCONXWS Connection diameter max

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

100 mm

DIN

HSK10000185

FamilyProducts

GARANT Short drill chuck Form A

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

17.85 mm

LB Length 2

60.05 mm

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 DCONWS Diameter

2.5 mm

LOC-01 DCONXWS Connection diameter max

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00250105ZYL01600105

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

LPR Protruding length

119.35 mm

LSCX Clamping length maximum

29 mm

Name Identifying order number

307740 2,5-16

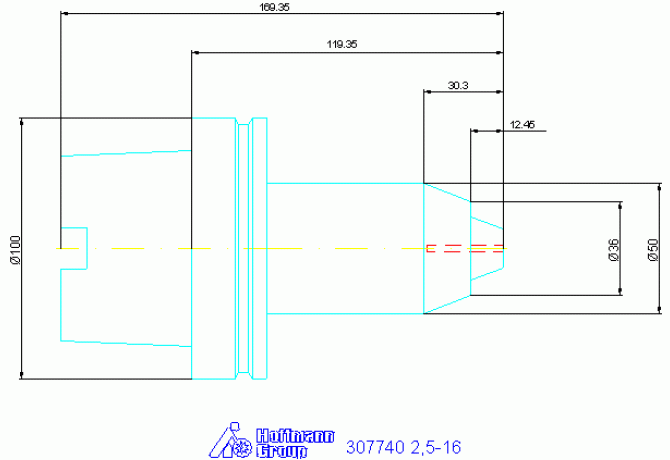

OAL Overall length

169.35 mm

WT Weight of item

2.95 kg
