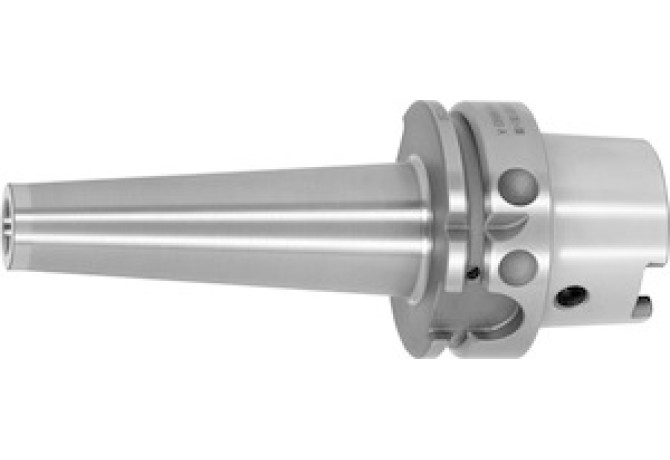

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 307045 M8X50

307045 M8X50

307045 M8X50

Hoffmann Group

Артикул: 307045 M8X50

В наличии

В корзину

Описание

Характеристики

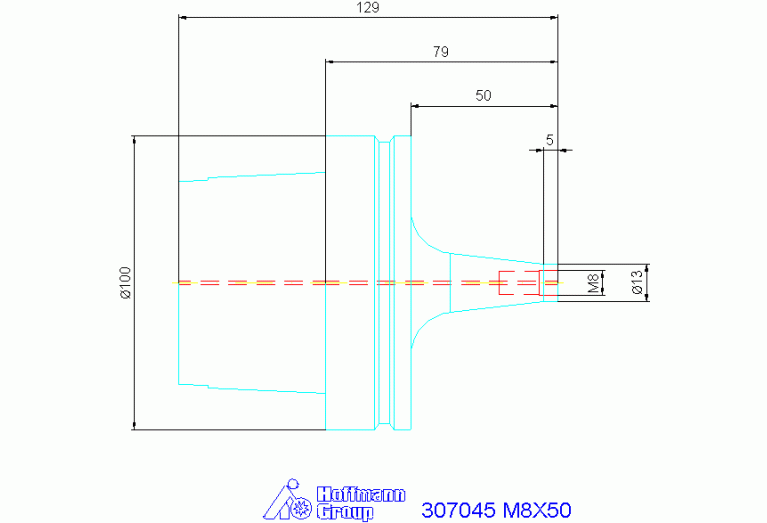

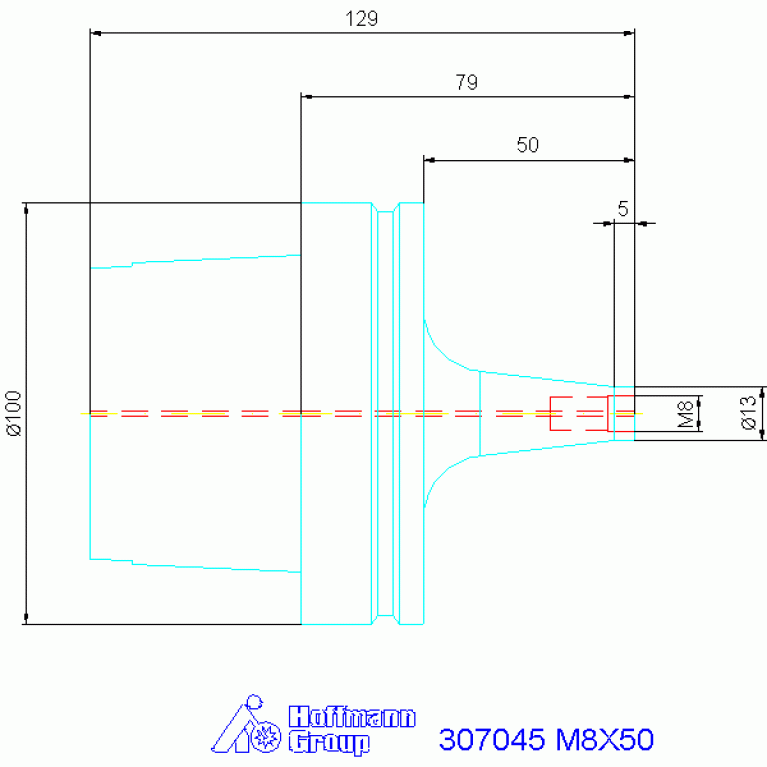

BD Body diameter

13 mm

BD Body diameter 2

49.85 mm

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

SAD

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0080

DCONWS Diameter

8 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

1/11/2017

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

GARANT Arbor for threaded copy mills tapered form

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

5 mm

LB Length 2

45 mm

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAD Screw mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0080

LOC-01 DCONWS Diameter

8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAD00800115

LOC-02 DCONWS Diameter

8 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

HOG-T8

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

79 mm

LSCX Clamping length maximum

20 mm

Name Identifying order number

307045 M8X50

OAL Overall length

129 mm

WT Weight of item

1.8 kg
