Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 307045 M12X150

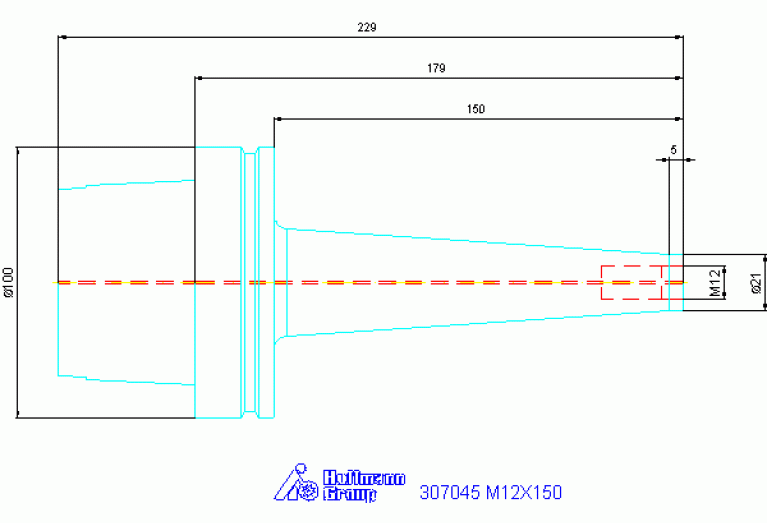

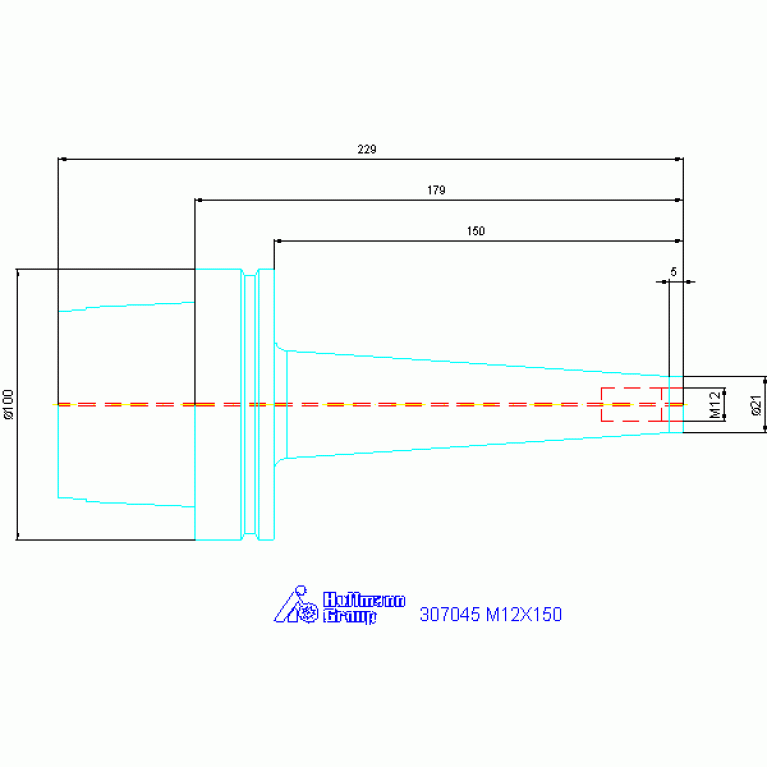

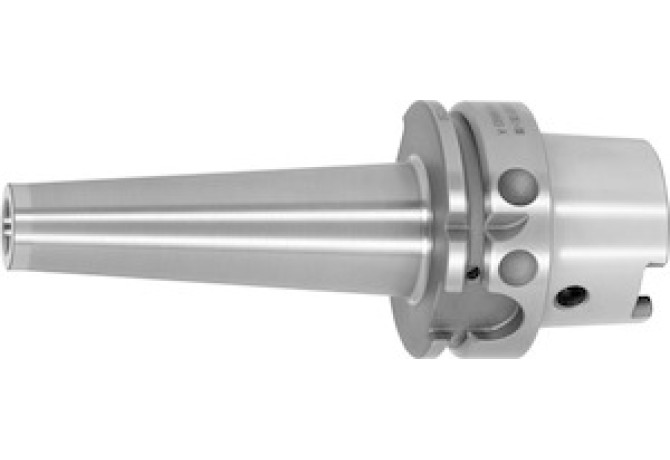

307045 M12X150

307045 M12X150 307045 M12X150 307045 M12X150

307045 M12X150

Hoffmann Group
Артикул: 307045 M12X150
В наличии
В корзину
Описание
Характеристики
BD Body diameter
21 mm
BD Body diameter 2
49.35 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAD
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0120
DCONWS Diameter
12 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
1/11/2017
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
GARANT Arbor for threaded copy mills tapered form
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
5 mm
LB Length 2
145 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAD Screw mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0120
LOC-01 DCONWS Diameter
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAD01200115
LOC-02 DCONWS Diameter
12 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
HOG-T12
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
179 mm
LSCX Clamping length maximum
30 mm
Name Identifying order number
307045 M12X150
OAL Overall length
229 mm
WT Weight of item
3.1 kg
