Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 306935 2

306935 2

306935 2 306935 2 306935 2

306935 2

Hoffmann Group
Артикул: 306935 2
В наличии
В корзину
Описание
Характеристики

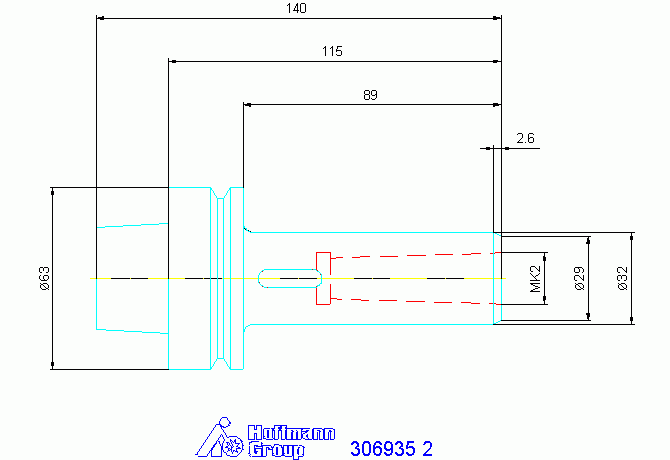

BD Body diameter
32 mm
CCFWS Connection code form
20
CCSWS Connection code style
5
CCTWS Connection code type
MKG
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0020
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
HSK06300485
FamilyProducts

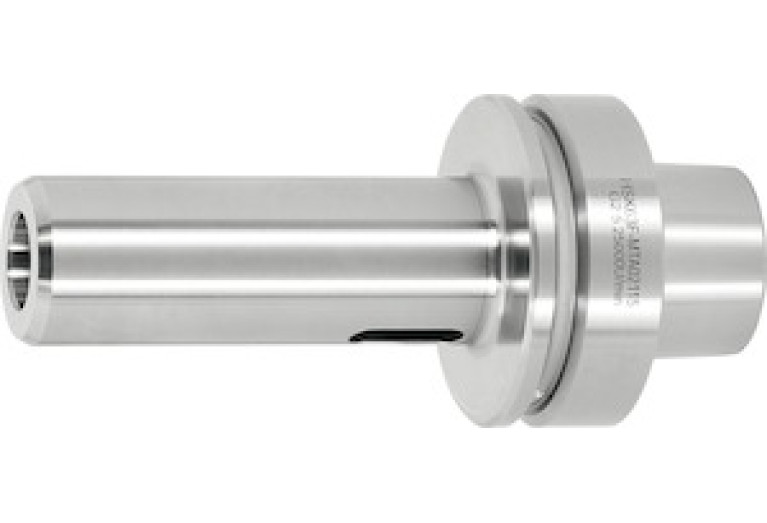

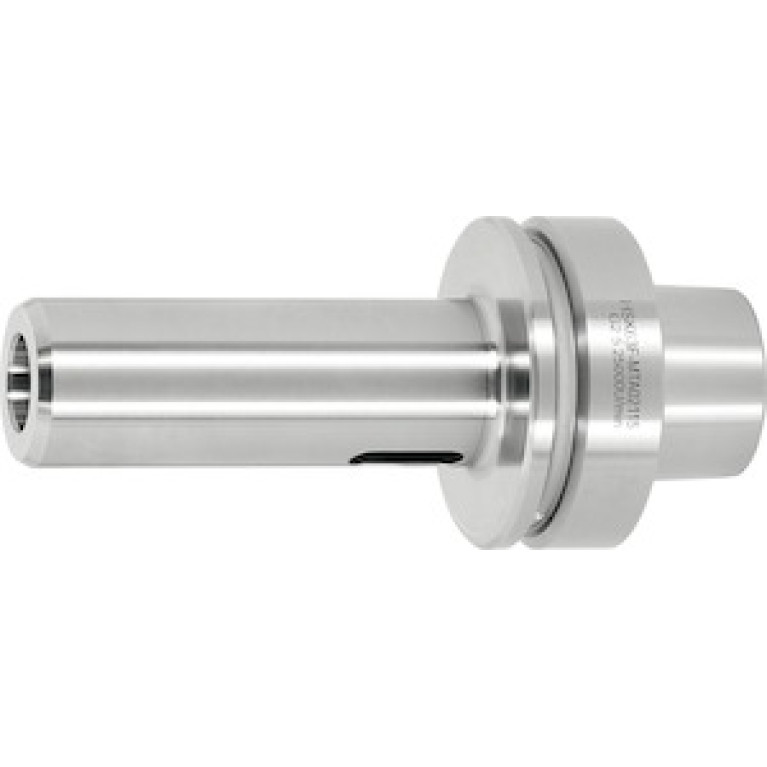

GARANT MT reducing sleeve with tang
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
89 mm
LB Length 2
0 mm
LF Functional length
115 mm
LOC-01 CCFWS Connection code form
20
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
MKG Morse taper
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0020
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
MKG00202085
LOC-03 CCFMS Connection code form
04
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300485
LPR Protruding length
115 mm
Name Identifying order number
306935 2
OAL Overall length
140 mm
WT Weight of item
1.062 kg
