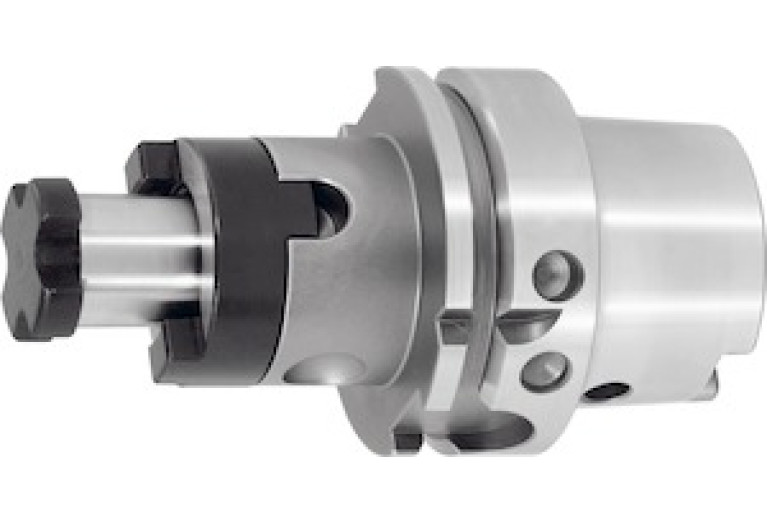

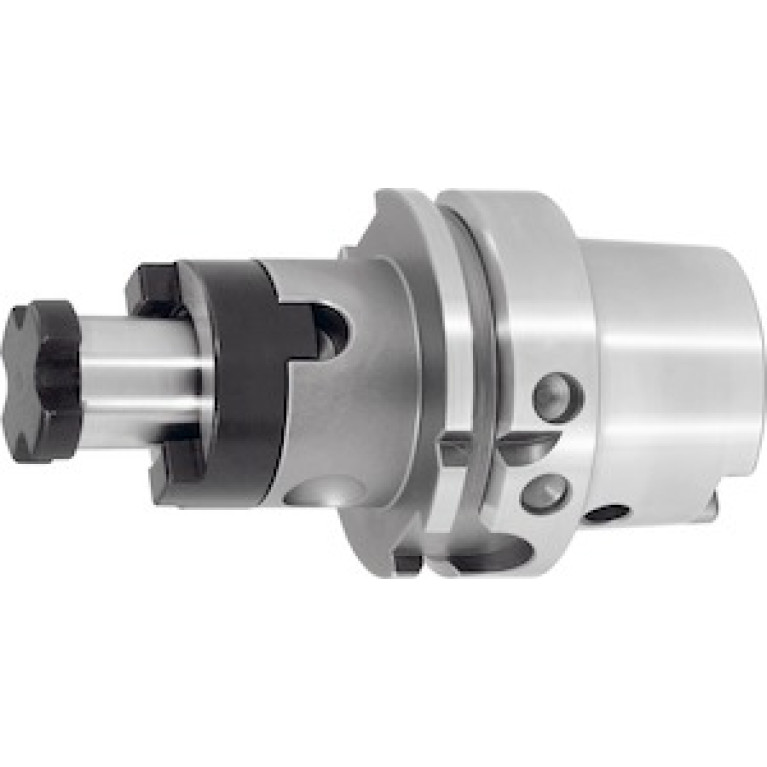

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 306250 16

306250 16

306250 16

Hoffmann Group

Артикул: 306250 16

В наличии

В корзину

Описание

Характеристики

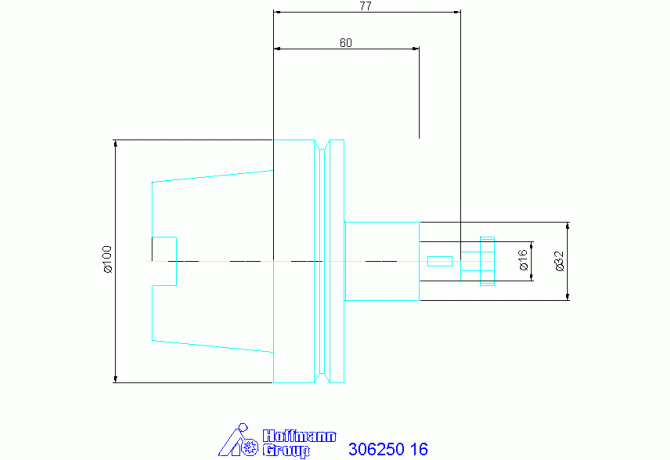

BD Body diameter

32 mm

CCSWS Connection code style

0

CCTWS Connection code type

FDA

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0160

DCONWS Diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

GARANT Combination face mill adapter

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

31 mm

LF Functional length

77 mm

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA01600200

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

77 mm

LSCX Clamping length maximum

17 mm

Name Identifying order number

306250 16

WT Weight of item

2.15 kg
