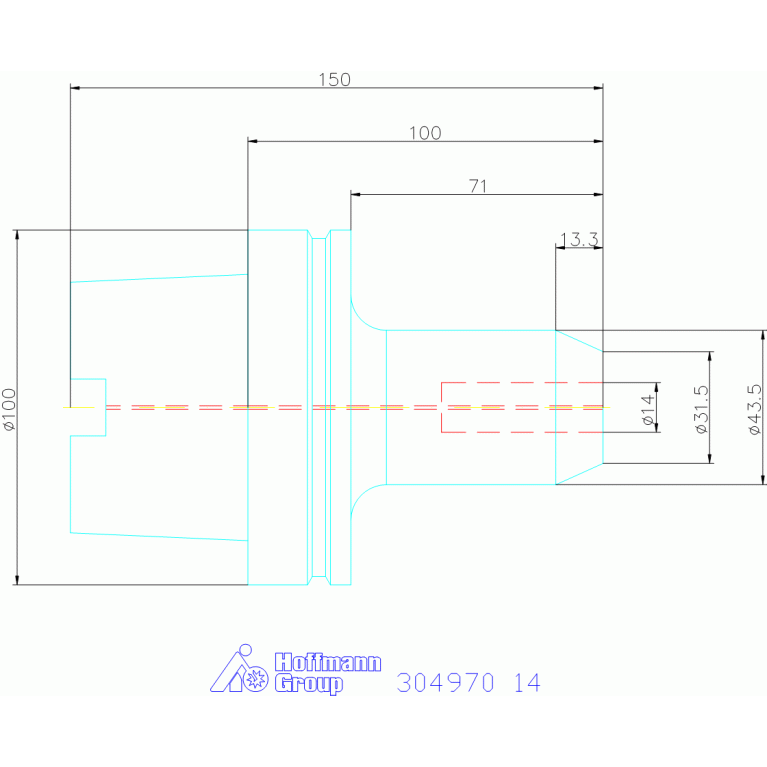

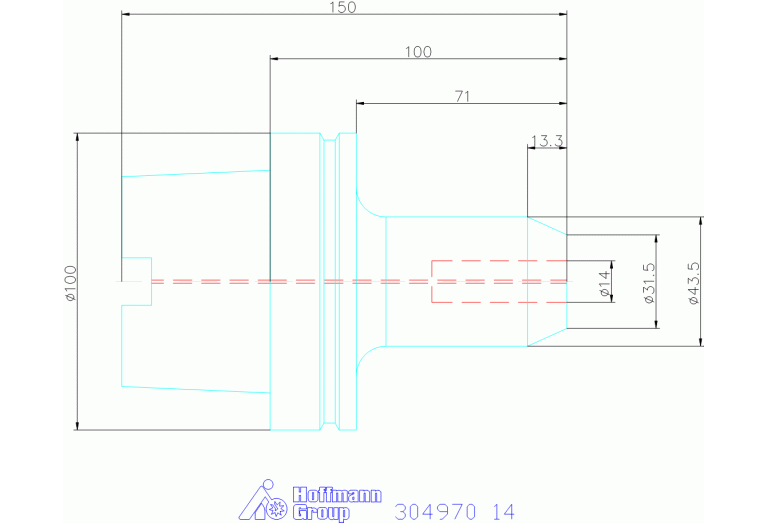

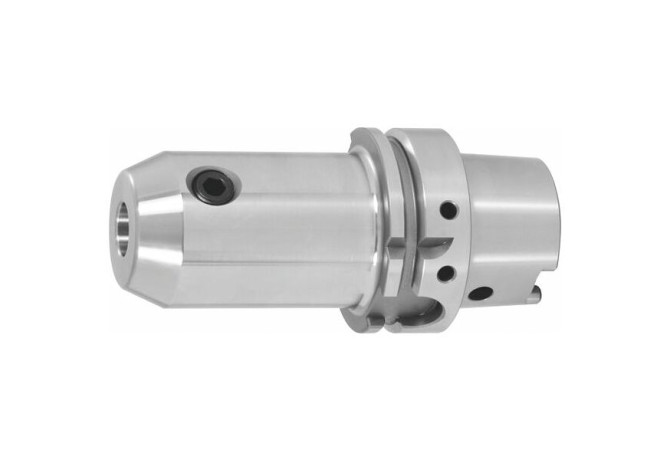

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 304970 14

304970 14

304970 14

Hoffmann Group

Артикул: 304970 14

В наличии

В корзину

Описание

Характеристики

BD Body diameter

43.5 mm

CCFWS Connection code form

13

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0140

DCONWS Diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

GARANT Whistle-Notch arbor

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

71 mm

LOC-01 CCFWS Connection code form

13

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0140

LOC-01 DCONWS Diameter

14 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01401315

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

100 mm

LSCX Clamping length maximum

45.5 mm

Name Identifying order number

304970 14

OAL Overall length

150 mm

WT Weight of item

2.82 kg
