Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 303197 0,3-8

303197 0,3-8

303197 0,3-8 303197 0,3-8 303197 0,3-8

303197 0,3-8

Hoffmann Group
Артикул: 303197 0,3-8
В наличии
В корзину
Описание
Характеристики

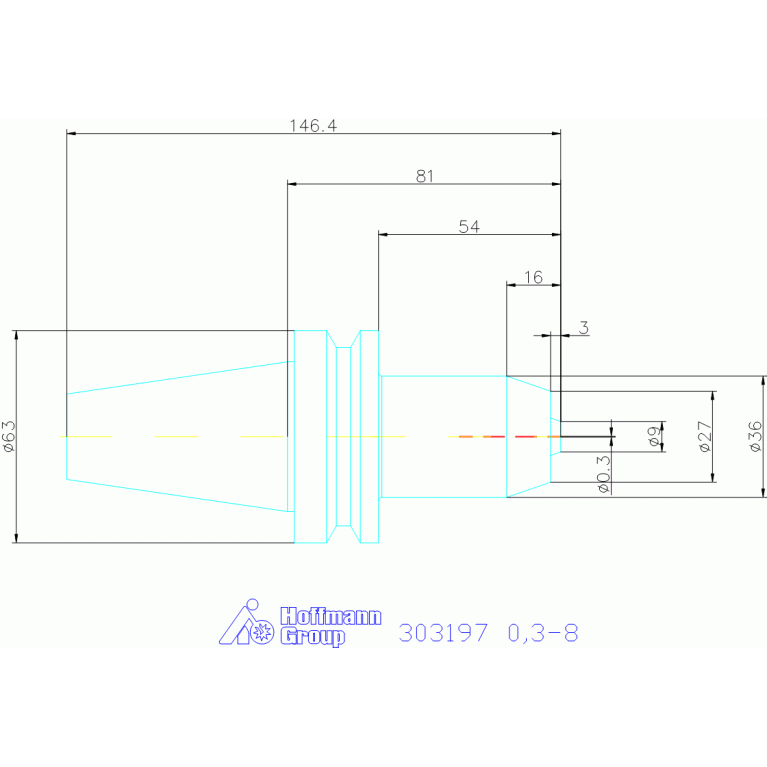

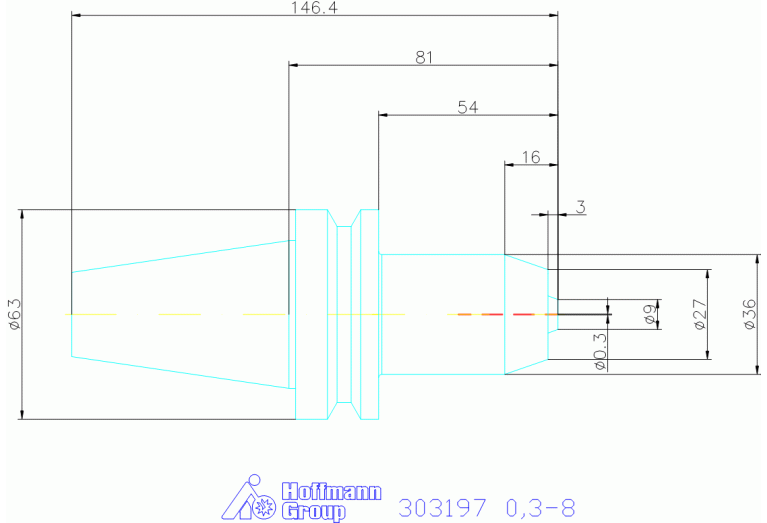

BD Body diameter
27 mm
BD Body diameter 2
36 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCONWS Diameter
0.3 mm
DCONXWS Connection diameter max
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
SKG05005085
FamilyProducts

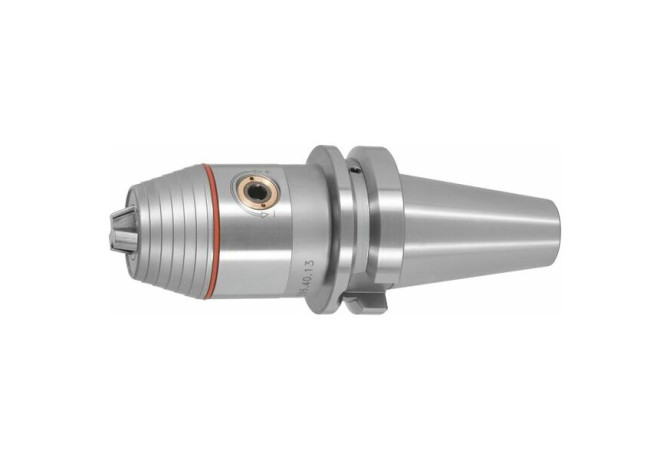

WTE Short drill chuck Form A
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
13 mm
LB Length 2
38 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 DCONWS Diameter
0.3 mm
LOC-01 DCONXWS Connection diameter max
8 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00030105ZYL00800105
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05005085
LPR Protruding length
78 mm
Name Identifying order number
303197 0,3-8
OAL Overall length
143.4 mm
TA Taper angle
19.09 Degree
WT Weight of item
1.4 kg
