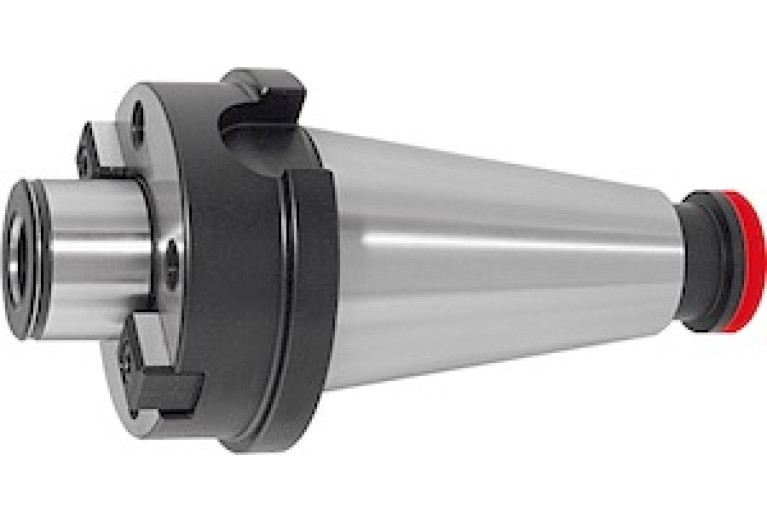

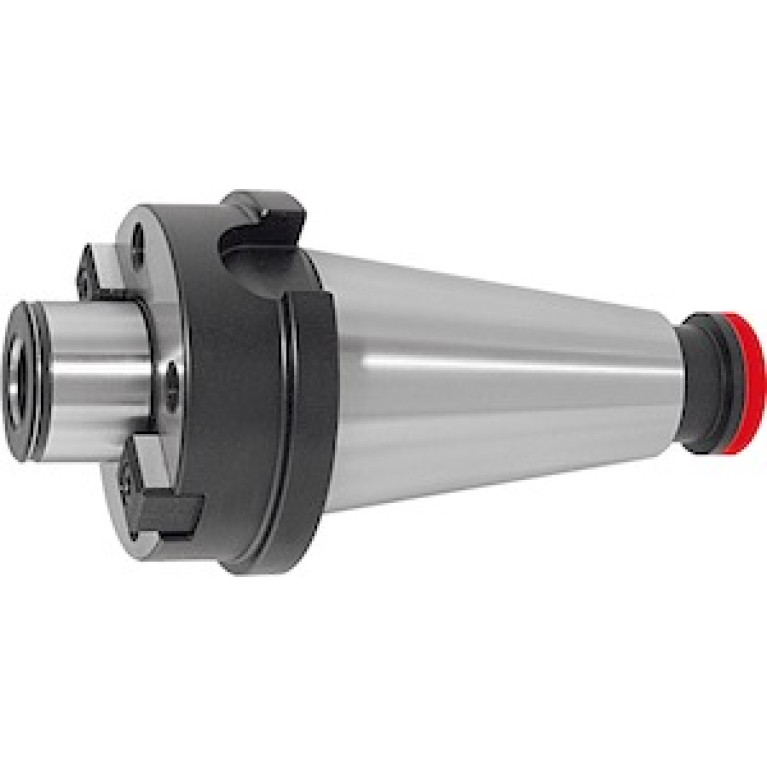

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 302528 60

302528 60

302528 60 302528 60 302528 60

302528 60

Hoffmann Group
Артикул: 302528 60
В наличии
В корзину
Описание
Характеристики

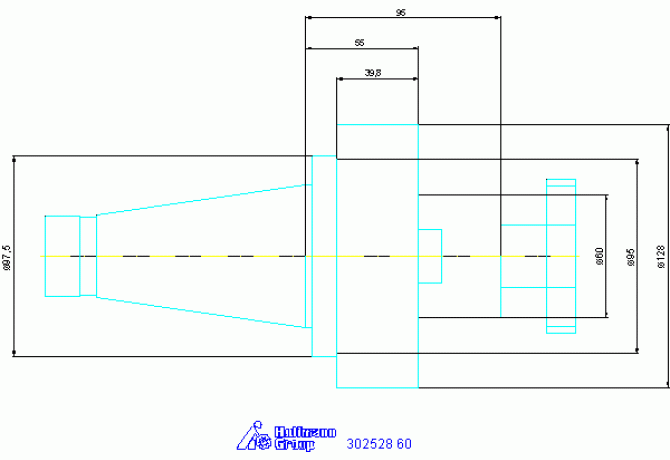

BD Body diameter
128 mm
CCSWS Connection code style
0
CCTWS Connection code type
SPK
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0600
DCONWS Diameter
60 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
97.5 mm
DIN
SKG05002085
FamilyProducts
Face mill arbor
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
39.8 mm
LF Functional length
55 mm
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
SPK Spindle nose mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0600
LOC-01 DCONWS Diameter
60 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA06000200
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05002085
LPR Protruding length
95 mm
LSCX Clamping length maximum
40 mm
Name Identifying order number
302528 60
OAL Overall length
221.8 mm
WT Weight of item
7.45 kg
