Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 302460 2-25

302460 2-25

302460 2-25 302460 2-25 302460 2-25

302460 2-25

Hoffmann Group
Артикул: 302460 2-25
В наличии
В корзину
Описание
Характеристики
BD Body diameter
48 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0250
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63 mm
DIN
SKG04002085
DLN Diameter lock nut
60 mm
FamilyProducts

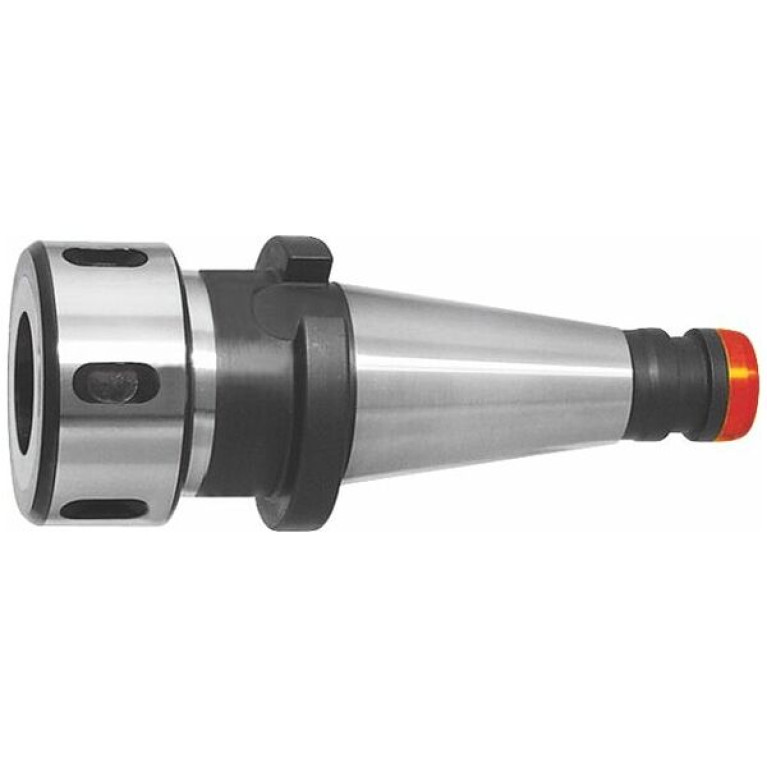

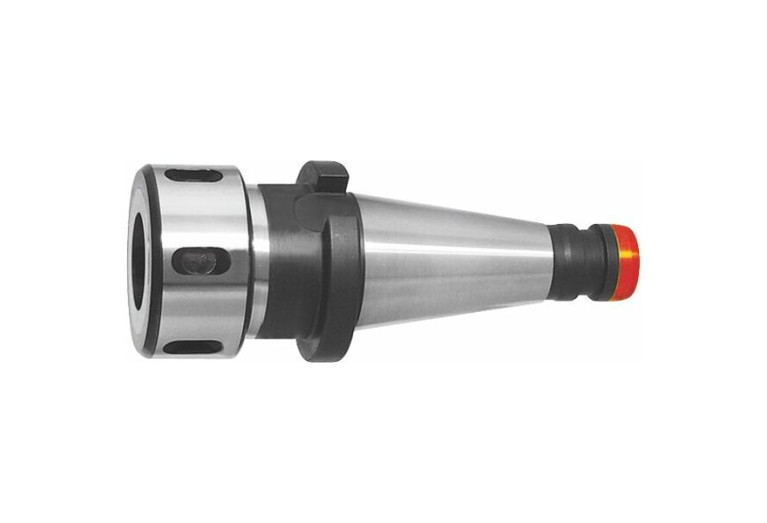

OZ collet chuck with snap ring groove
HAN Adjustment nut height
30 mm
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
24.4 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
8 non-dimensional size
LOC-01 CZCWS Connection size code
0250
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02500185
LOC-02 CCFWS Connection code form
01
LOC-02 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-02 CCUWS Connection code unit base
8 non-dimensional size
LOC-02 CZCWS Connection size code
0250
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZD02500195
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04002085
LPR Protruding length
66 mm
Name Identifying order number
302460 2-25

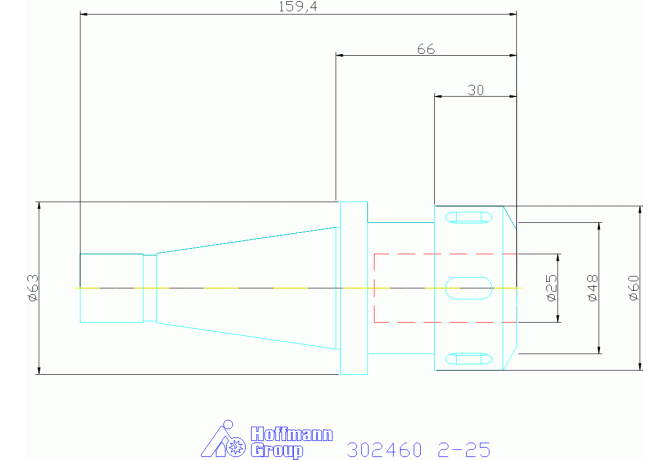

OAL Overall length
159.4 mm
WT Weight of item
1.4 kg
