Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 302368 32

302368 32

302368 32 302368 32

302368 32

Hoffmann Group
Артикул: 302368 32
В наличии
В корзину
Описание
Характеристики

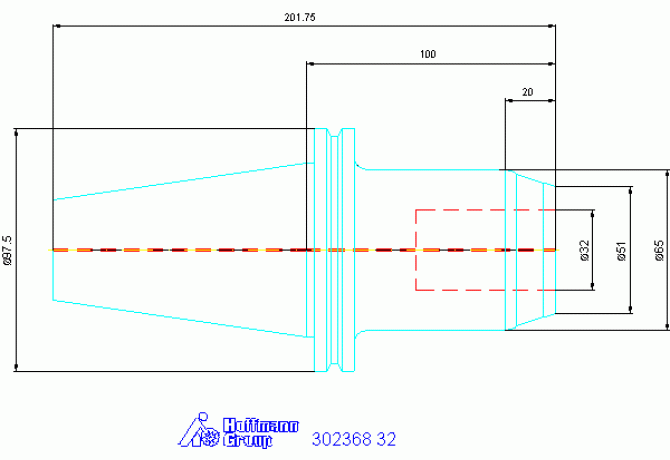

BD Body diameter
65 mm
BD Body diameter 2
65 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
97.5 mm
DIN
SKG05001795
FamilyProducts
GARANT HD chuck stub, version HT with cooling channel bores
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR Protruding length
100 mm
LSCX Clamping length maximum
56 mm
Name Identifying order number
302368 32
OAL Overall length
201.75 mm
TA Taper angle
20 Degree
WT Weight of item
5.7 kg
