302052 10

302052 10

Hoffmann Group
Артикул: 302052 10
В наличии
В корзину
Характеристики
BD Body diameter
30 mm
BD Body diameter 2
49.5 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCONWS Diameter
10 mm
DCP Data chip provision
1 - With data chip
Delivery state valid from
1/11/2017
DF Flange diameter
97.5 mm
DIN
SKG05001795
FamilyProducts

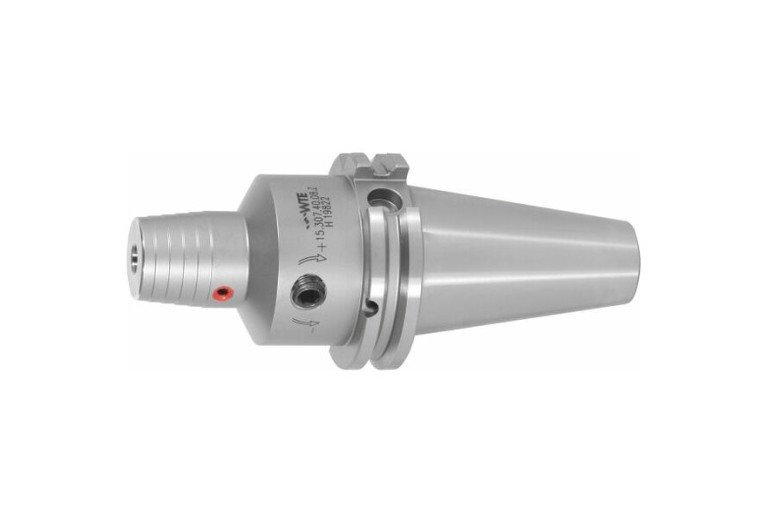

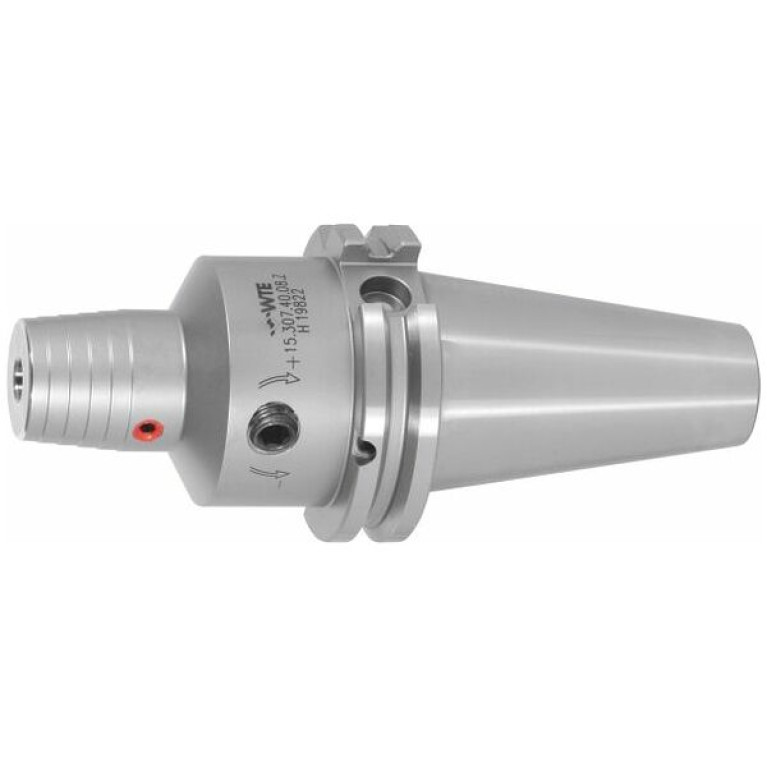

WTE HD chuck short, slim, form ADB
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
35 mm
LB Length 2
26.4 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000105
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR Protruding length
80.5 mm
LSCX Clamping length maximum
41 mm
Name Identifying order number
302052 10

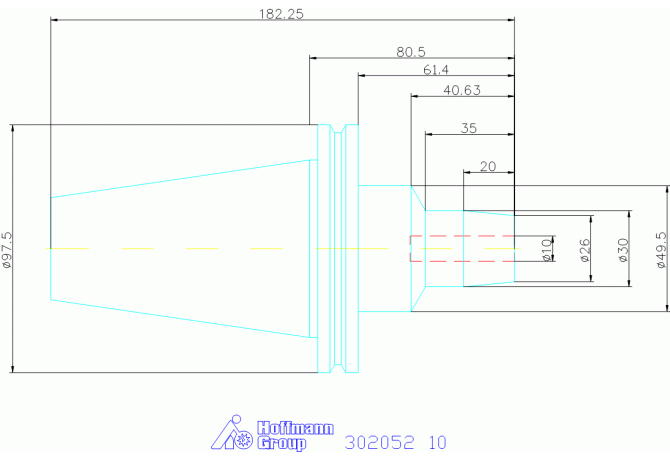

OAL Overall length
182.25 mm
WT Weight of item
3.3 kg
