Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 302031 16

302031 16

302031 16 302031 16 302031 16

302031 16

Hoffmann Group
Артикул: 302031 16
В наличии
В корзину
Описание
Характеристики
BD Body diameter
46 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
63.55 mm
DIN
SKG04001795
FamilyProducts

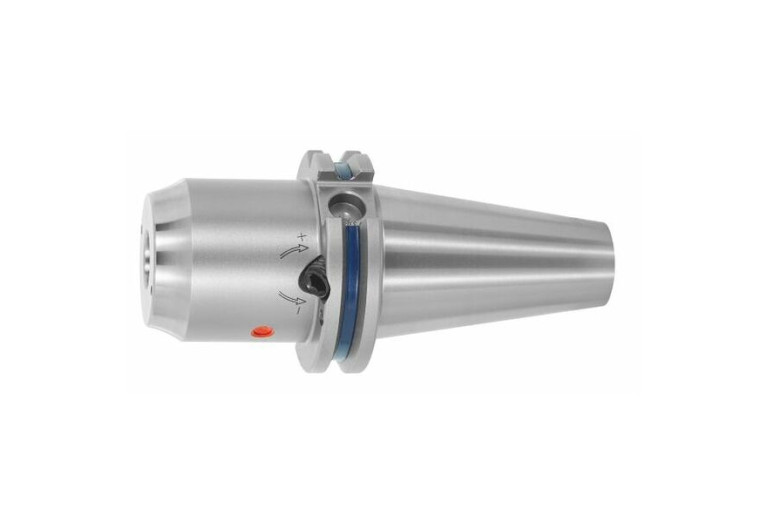

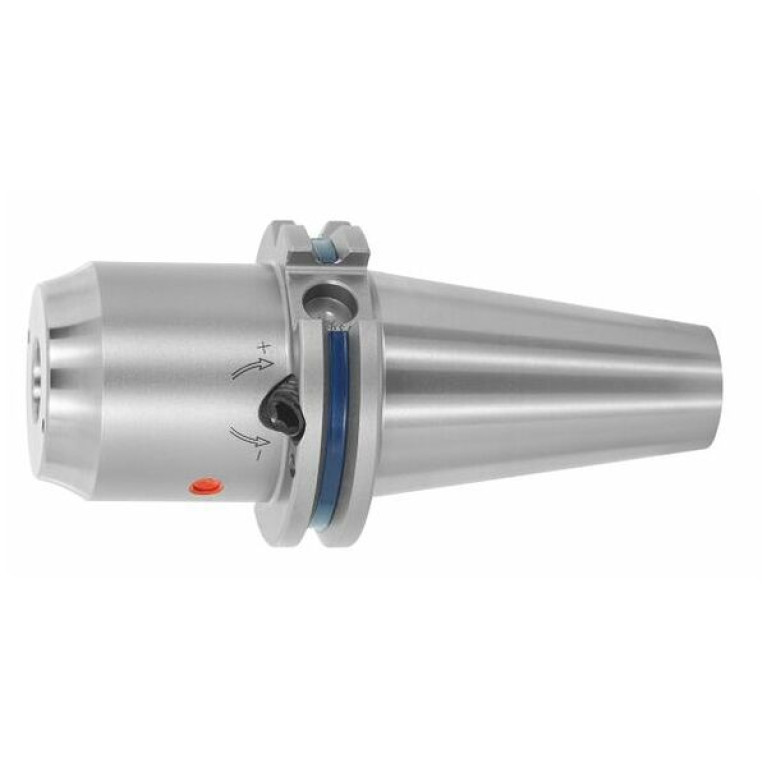

GARANT HD chuck short, version HT with cooling channel bores
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
45.4 mm
LB Length 2
45.4 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
64.5 mm
LSCX Clamping length maximum
49 mm
Name Identifying order number
302031 16
OAL Overall length
132.9 mm
TA Taper angle
22 Degree
WT Weight of item
1.3 kg
