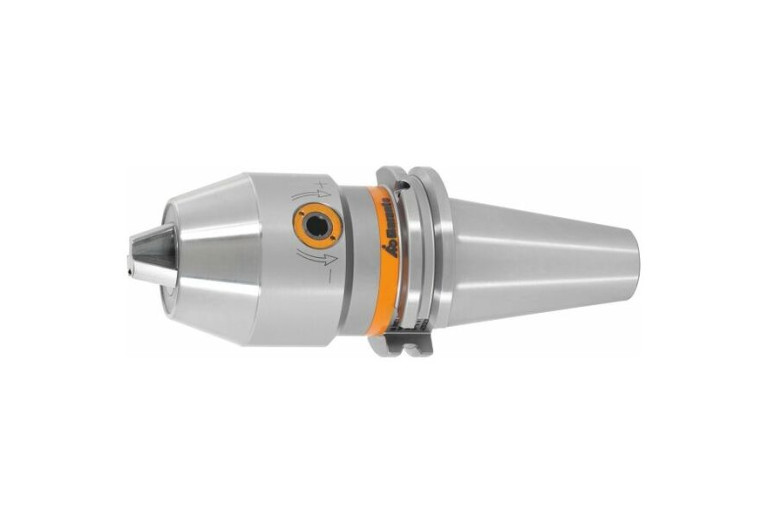

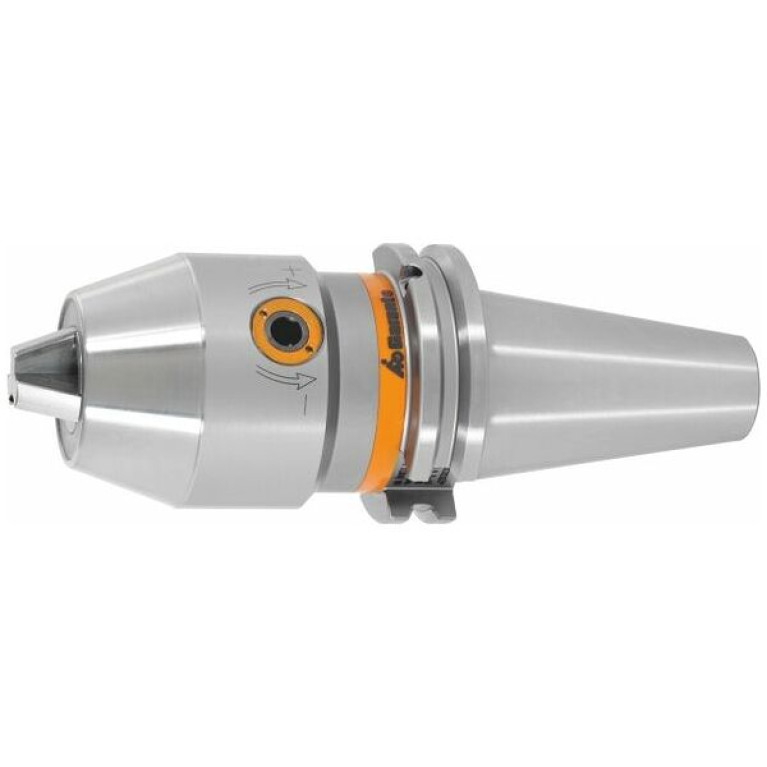

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 301467 0,5-16

301467 0,5-16

301467 0,5-16 301467 0,5-16 301467 0,5-16

301467 0,5-16

Hoffmann Group
Артикул: 301467 0,5-16
В наличии
В корзину
Описание
Характеристики

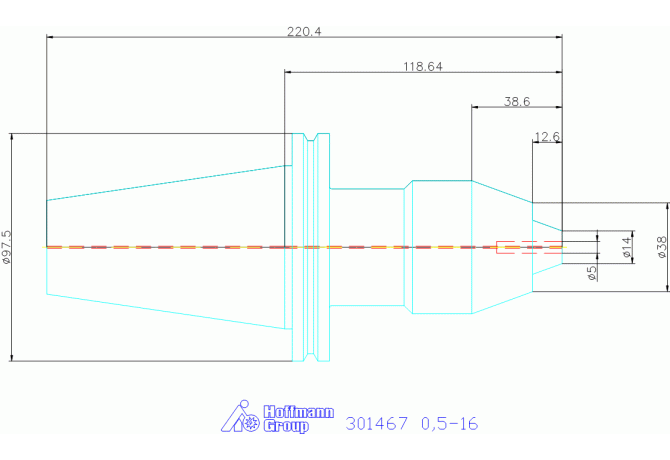

BD Body diameter
38 mm
BD Body diameter 2
57 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONWS Diameter
0.5 mm
DCONXWS Connection diameter max
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
97.5 mm
DIN
SKG05001795
FamilyProducts
GARANT Short drill chuck Form AD/B
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
26 mm
LB Length 2
61 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 DCONWS Diameter
0.5 mm
LOC-01 DCONXWS Connection diameter max
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00050115ZYL01600115
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001795
LPR Protruding length
106 mm
Name Identifying order number
301467 0,5-16
OAL Overall length
208 mm
WT Weight of item
4.2 kg
