Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 301387 M16X50

301387 M16X50

301387 M16X50 301387 M16X50 301387 M16X50

301387 M16X50

Hoffmann Group
Артикул: 301387 M16X50
В наличии
В корзину
Описание
Характеристики
BD Body diameter
35 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0250
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
30 mm
DIN
SAD01600115
DLN Diameter lock nut
35 mm
FamilyProducts

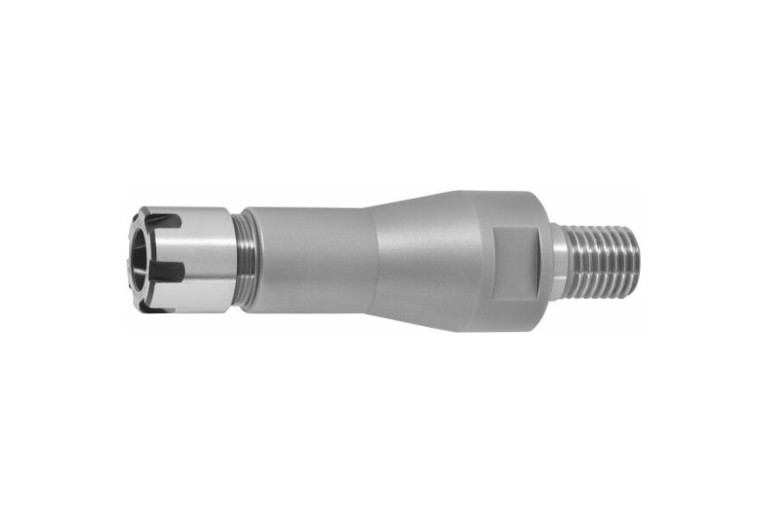

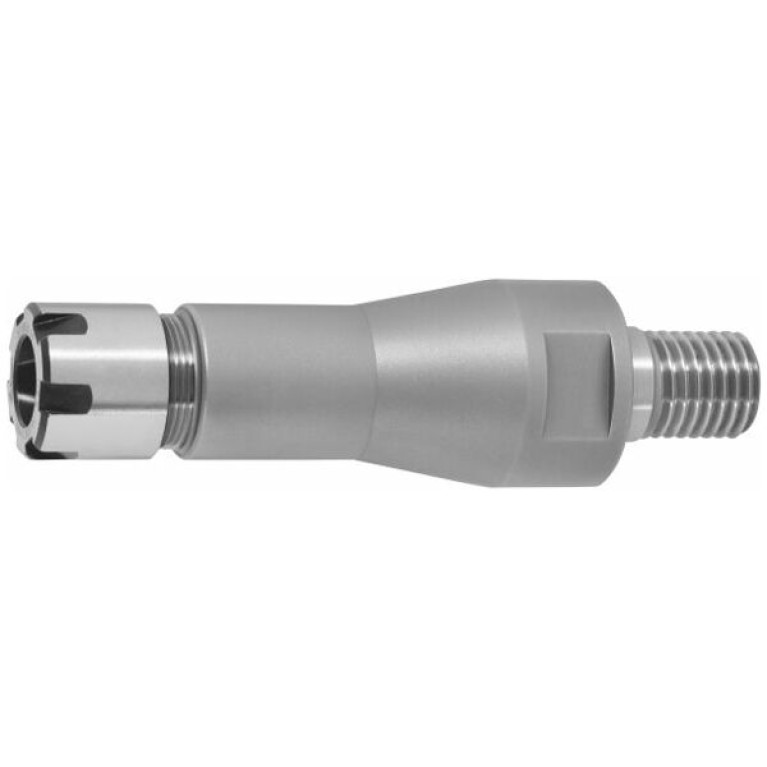

GARANT Screw-in adapter for collets ER25
HAN Adjustment nut height
20.5 mm
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
6 mm
LB Length 2
0 mm
LF Functional length
4 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02500285
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600115
LPR Protruding length
50 mm
Name Identifying order number
301387 M16X50

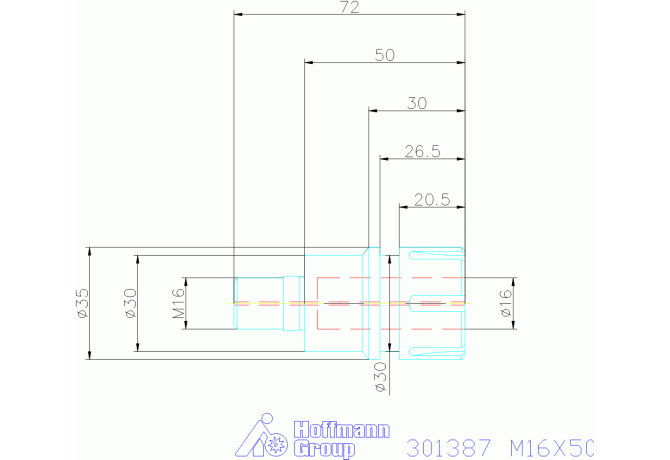

OAL Overall length
72 mm
THSZMS Connection thread nominal size machine side
M16x2.0
WT Weight of item
0.194 kg
