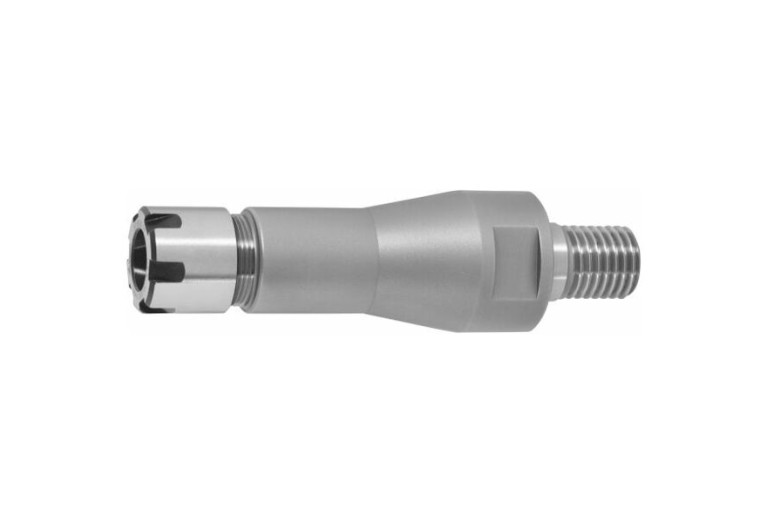

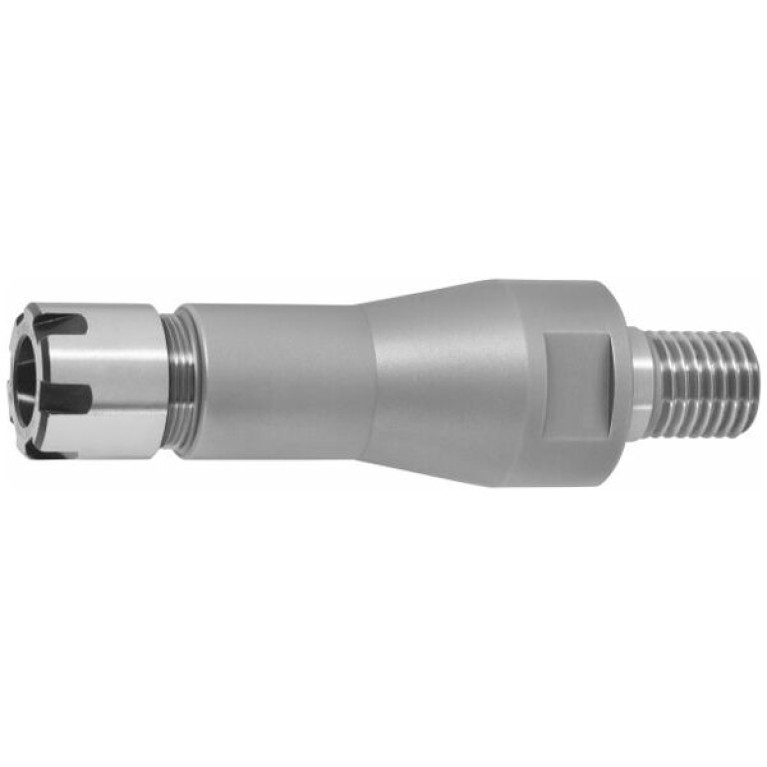

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 301382 M12X45

301382 M12X45

301382 M12X45 301382 M12X45 301382 M12X45

301382 M12X45

Hoffmann Group
Артикул: 301382 M12X45
В наличии
В корзину
Описание
Характеристики

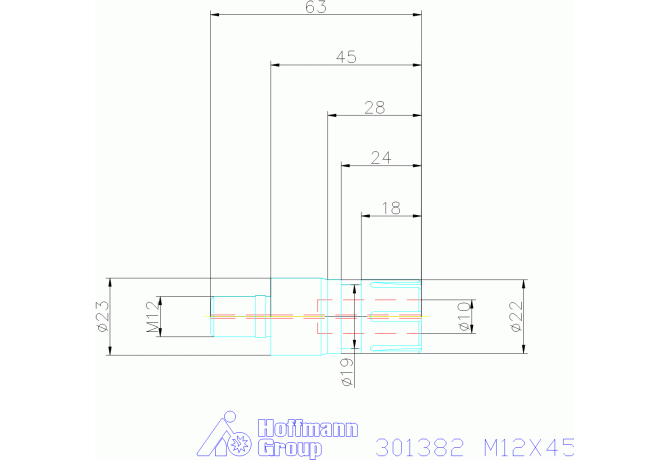

BD Body diameter
22 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCONWS Diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
23 mm
DIN
SAD01600115
DLN Diameter lock nut
22 mm
FamilyProducts
GARANT Screw-in adapter for collets ER16
HAN Adjustment nut height
18 mm
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
6 mm
LB Length 2
0 mm
LF Functional length
14 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
12 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600285
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600115
LPR Protruding length
45 mm
Name Identifying order number
301382 M12X45
OAL Overall length
63 mm
THSZMS Connection thread nominal size machine side
M12x1.75
WT Weight of item
0.094 kg
