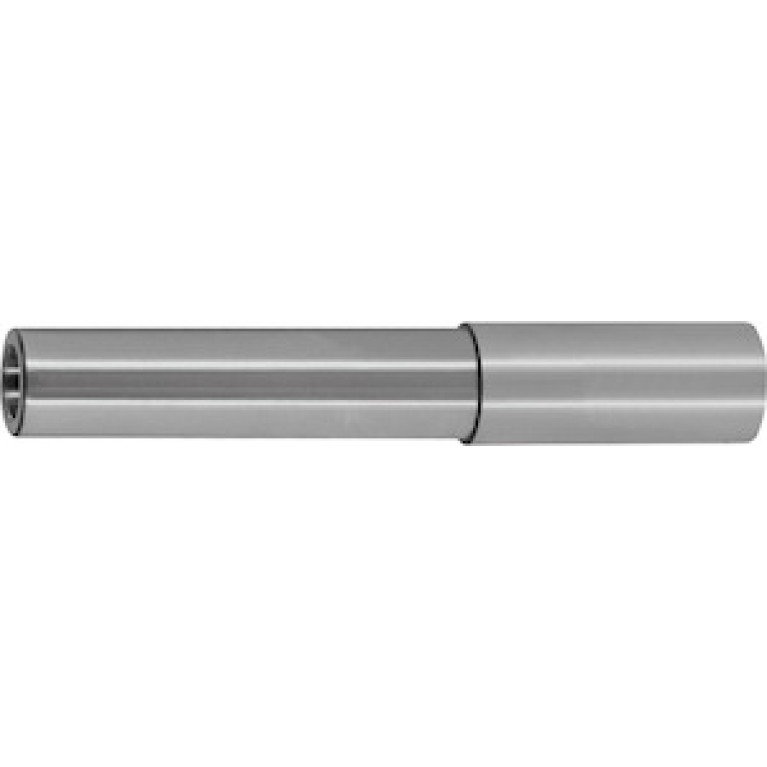

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 301348 M10X190

301348 M10X190

Артикул: 301348 M10X190

В наличии

В корзину

Описание

Характеристики

BD Body diameter

10.5 mm

BD Body diameter 2

20 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAD

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0100

DCONWS Diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02000115

FamilyProducts

GARANT Densimet tool arbor for screw-in milling cutters Ø d

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

140 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAD Screw mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0100

LOC-01 DCONWS Diameter

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAD01000115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

LPR Protruding length

140 mm

LSCX Clamping length maximum

25 mm

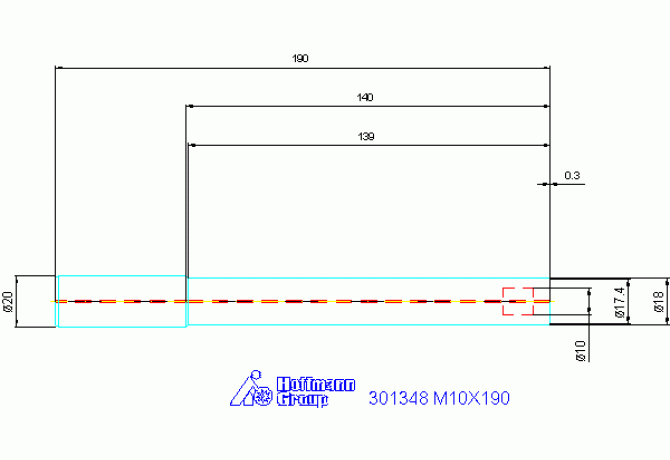

Name Identifying order number

301348 M10X190

OAL Overall length

190 mm

TCDCONMS ISO-tolerance class shank diameter

WT Weight of item

3 kg
