Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 301145 16

301145 16

301145 16 301145 16 301145 16

301145 16

Hoffmann Group
Артикул: 301145 16
В наличии
В корзину
Описание
Характеристики

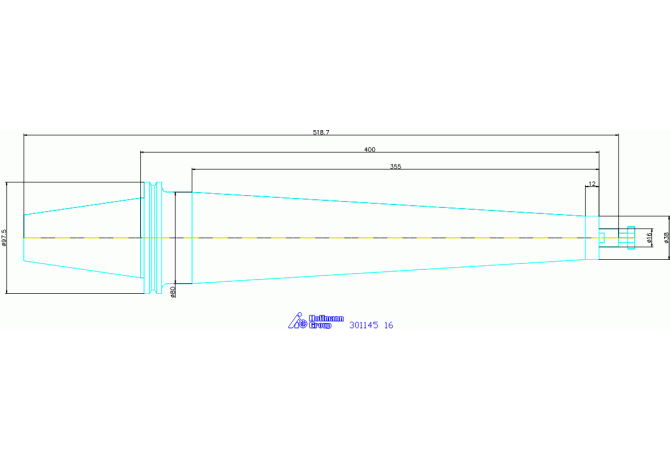

BD Body diameter
38 mm
BD Body diameter 2
80 mm
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
97.5 mm
DIN
SKG05002085
FamilyProducts

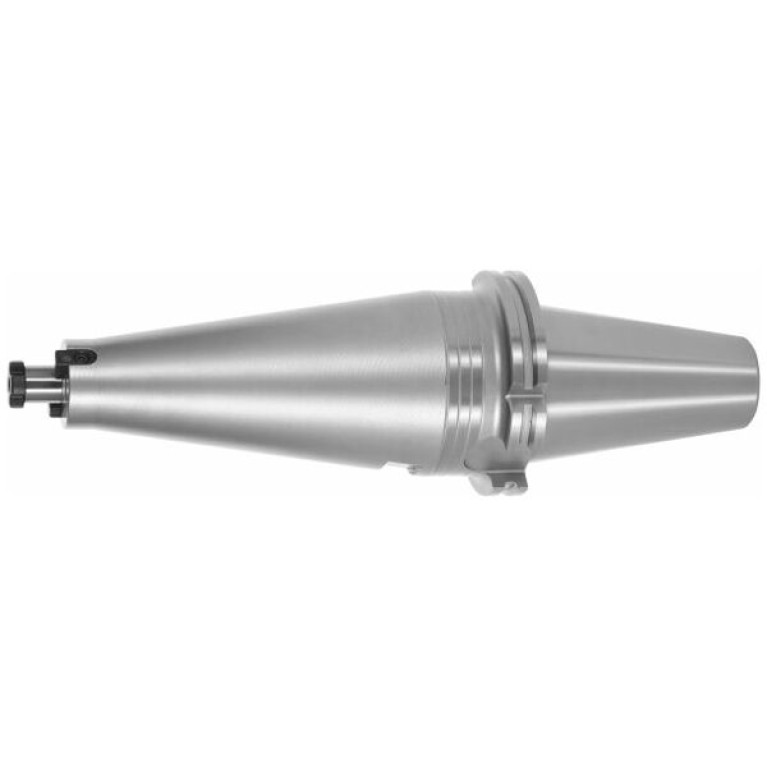

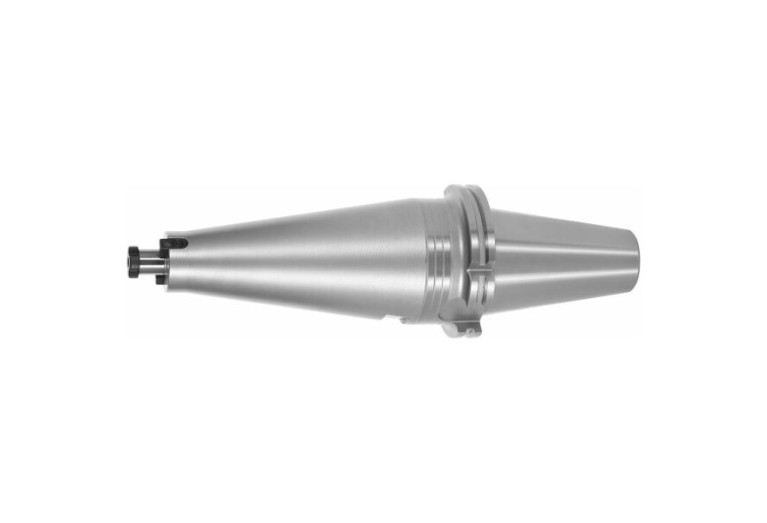

GARANT Milling head arbor, vibration damped
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
400 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA01600200
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05002085
LPR Protruding length
518.7 mm
LSCX Clamping length maximum
17 mm
Name Identifying order number
301145 16
OAL Overall length
518.7 mm
WT Weight of item
10.45 kg
