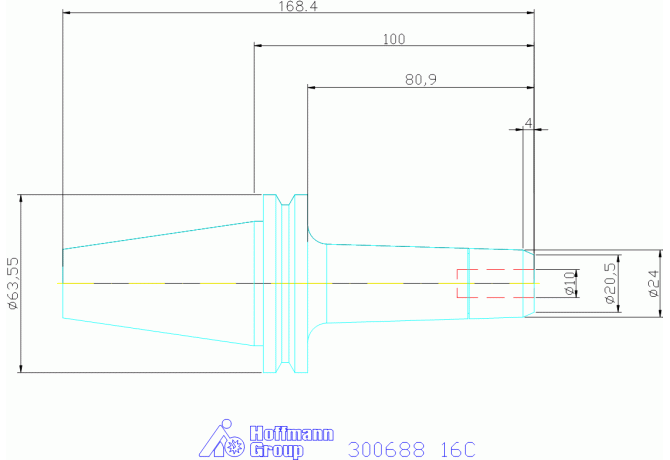

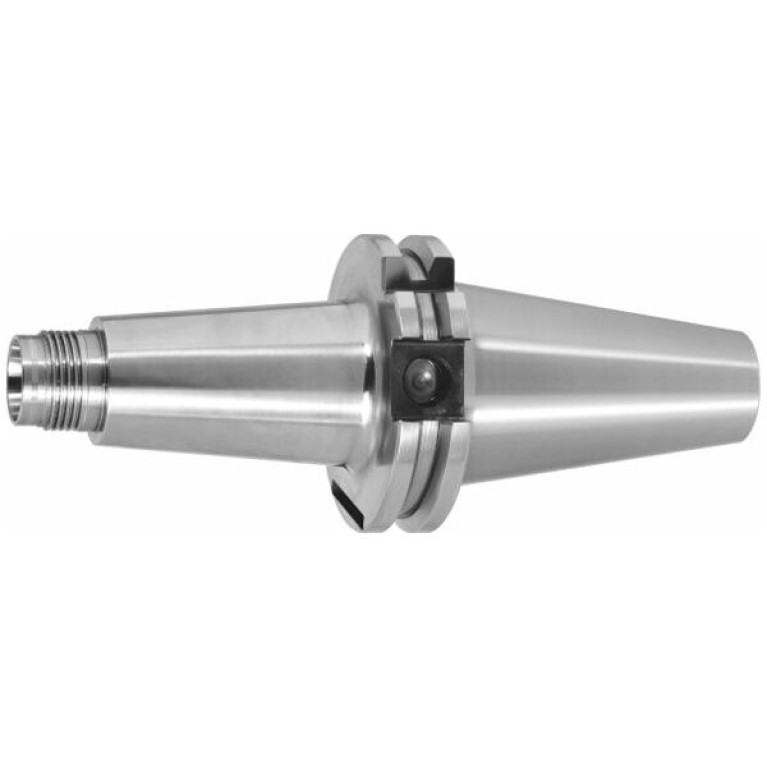

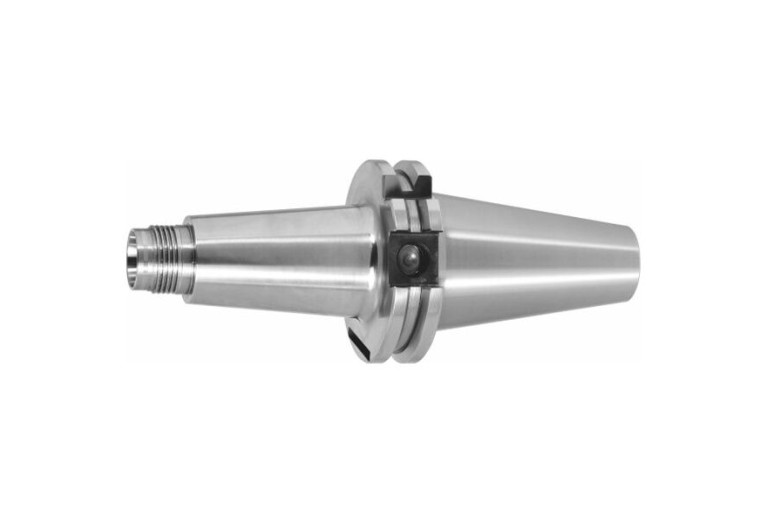

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 300688 16C

300688 16C

300688 16C 300688 16C 300688 16C

300688 16C

Hoffmann Group
Артикул: 300688 16C
В наличии
В корзину
Описание
Характеристики
BD Body diameter
28.2 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONWS Diameter
1 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
SKG04001795
DLN Diameter lock nut
25.2 mm
FamilyProducts
FAHRION Precision ER collet chuck CENTRO P
HAN Adjustment nut height
23.2 mm
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
50.5 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 DCONWS Diameter
1 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
HOG-CPER1-10
LOC-03 CCFMS Connection code form
17
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001795
LPR Protruding length
100 mm
Name Identifying order number
300688 16C
OAL Overall length
168.4 mm
WT Weight of item
1.19 kg
