Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer RM-SHR-1050-H7N-CS-CH

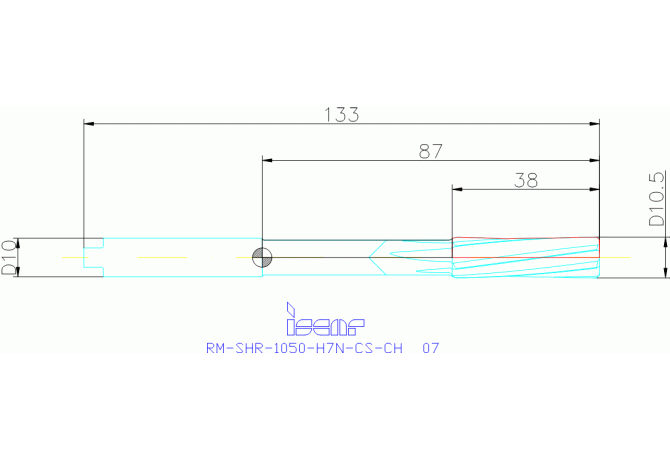

RM-SHR-1050-H7N-CS-CH

RM-SHR-1050-H7N-CS-CH RM-SHR-1050-H7N-CS-CH

RM-SHR-1050-H7N-CS-CH

Iscar
Артикул: 4440040
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
38 mm
BMC Body material code
B - Steel body with brazed carbide inserts
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CPDF Cutting pitch differential
0 - Equal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
10.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/11/2013
DIN
ZYL01002015
FamilyProducts
DIN 8093 Solid Carbide Reamers with Spiral Flutes and a Cylindrical Shank for Th
FHH Flute helix hand
L - Hand of helix left
GEP Guide element property
0 - Without guide elements
GRDMFG Grade manufacturers designation
IC07
HAND Cutting direction
R - Right
ID Technical product number
4440040
Interface codes
J6 /
ISYC Subclass
311-01 - Solid cylindrical reamer
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002015
LPR Protruding length
87 mm
Materials
P,K,N,S
Name Identifying order number
RM-SHR-1050-H7N-CS-CH
NOF Flute count
6
OAL Overall length
133 mm
RESYC Reaming tool style code
2 - For though-holes
STDNO Standard
DIN8093
TCDH ISO tolerance class for drilling result
H7
Working process
REI - Cylindrical reaming
