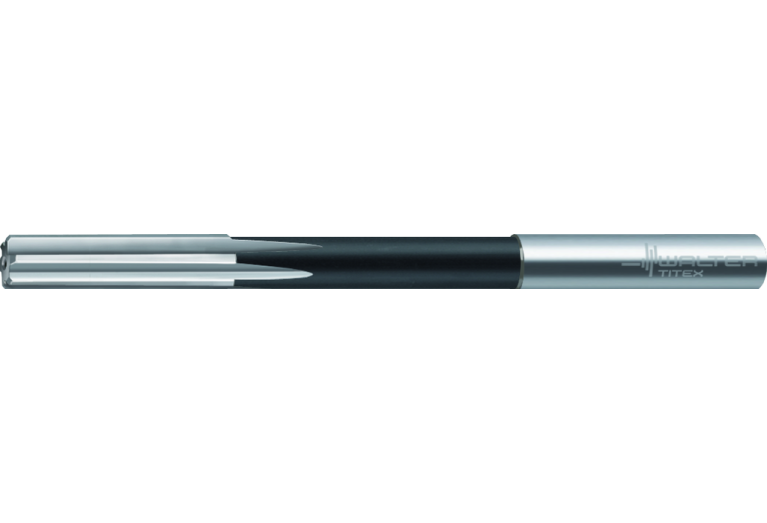

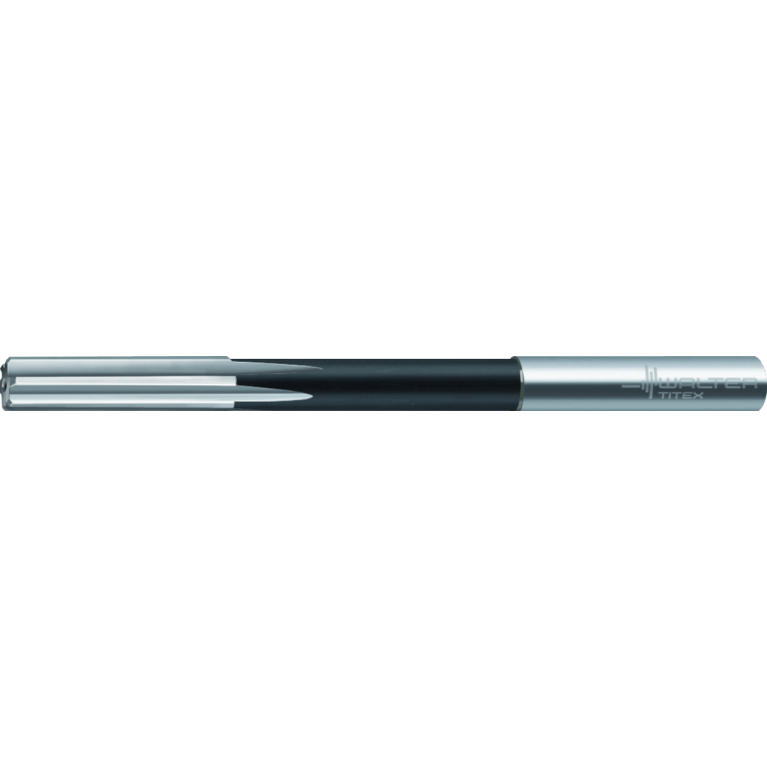

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer F1342-4.6

F1342-4.6

F1342-4.6 F1342-4.6 F1342-4.6

F1342-4.6

Walter
Артикул: 5071760
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

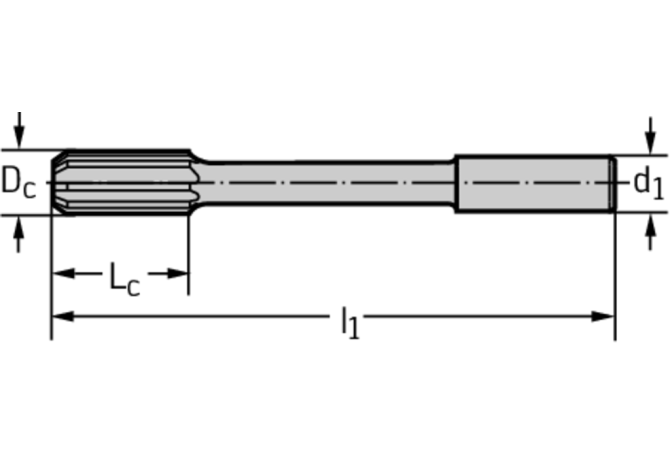

DC Cutting diameter minimum
4.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00450105
FamilyProducts
HSS machine reamers F1342
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5071760
Interface codes
J6 / J61
ISO
ZYL01F4500h$09
ISYC Subclass
311-01 - Solid cylindrical reamer
LDRED Neck length
47 mm
LF Functional length
80 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL01F4500h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00450105
LPR Protruding length
47.5 mm
LS Shank length
33 mm
LU Usable length
47 mm
Materials
P,K,N,O
Name Identifying order number
F1342-4.6
NOF Flute count
6
OAL Overall length
80 mm
PLANG Plug angle
45
PLGL Plug length
0.5 mm
RPMX Rotational speed maximum
6300 1/min
STDNO Standard
DIN 212
STDSZ Size to the standard number
0
TCDCONMS ISO-tolerance class shank diameter
h9
Working process
REI - Cylindrical reaming
WT Weight of item
0.011 kg
