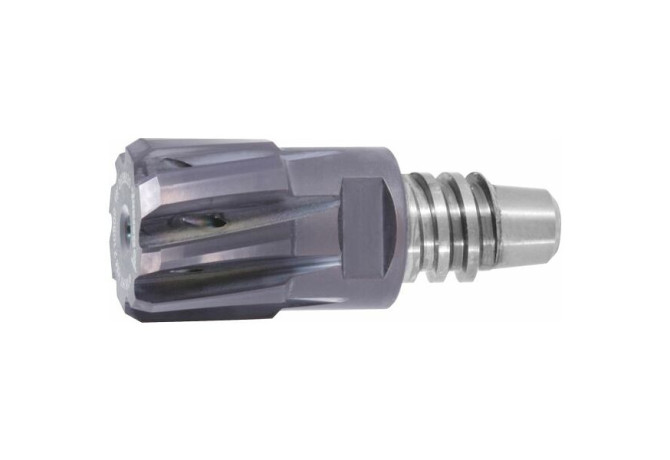

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer 239720 12

239720 12

Артикул: 239720 12

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

10 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TIALN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

HOG-TOPCUT10

FamilyProducts

GARANT Solid carbide reamers HPC H7 Steel through hole

FHA Flute helix angle

10 Degree

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

7.2 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-TOPCUT10

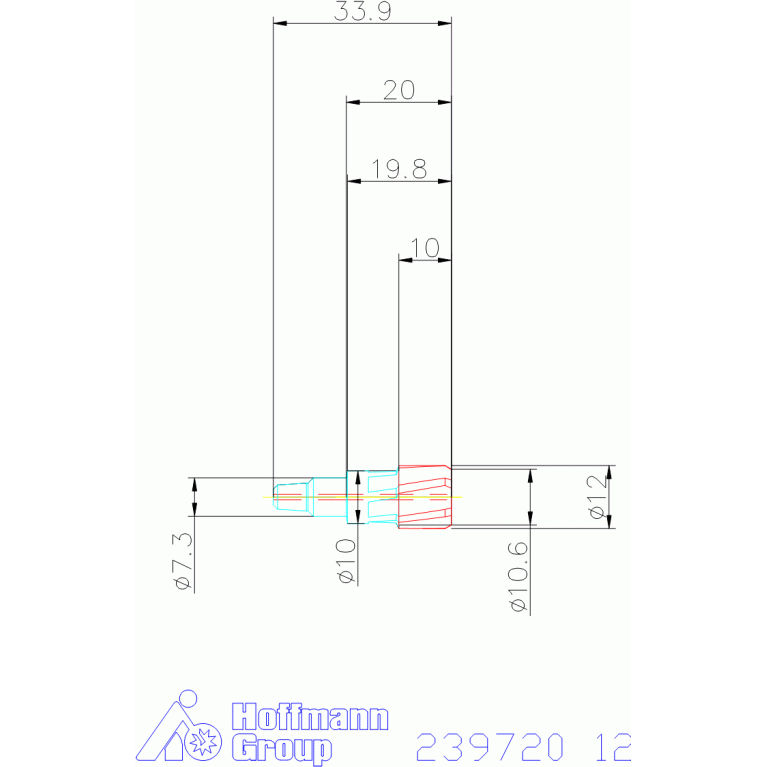

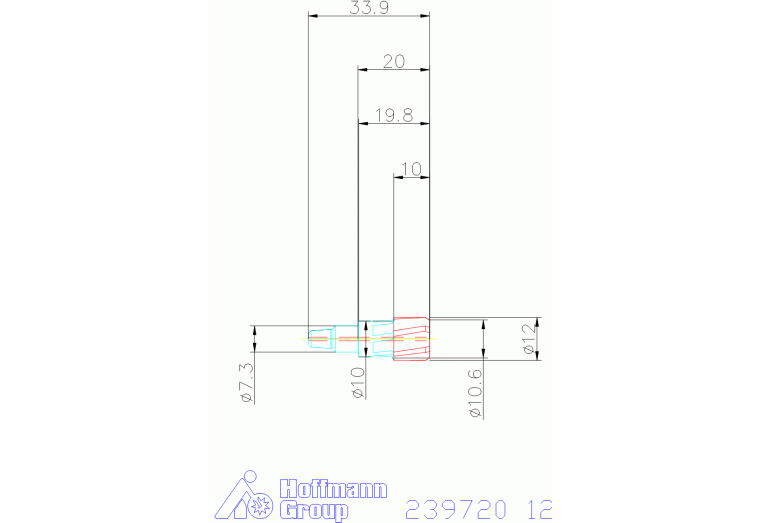

LPR Protruding length

20 mm

LU Usable length

19.8 mm

Name Identifying order number

239720 12

NOF Flute count

OAL Overall length

33.9 mm

PLANG Plug angle

PLGL Plug length

1.2 mm

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.026 kg
