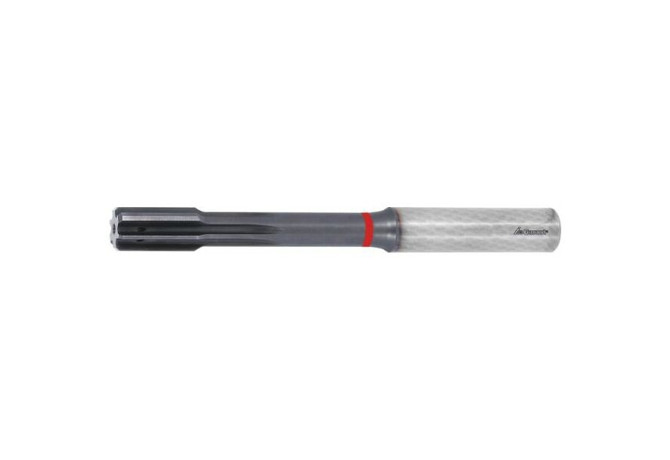

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer 164348 8

164348 8

Артикул: 164348 8

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TIALN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter minimum

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00800115

FamilyProducts

GARANT HPC solid carbide reamer H

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

64 mm

LS Shank length

36 mm

LU Usable length

60 mm

Name Identifying order number

164348 8

NOF Flute count

OAL Overall length

100 mm

PLANG Plug angle

PLGL Plug length

1.2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

REI - Cylindrical reaming

WT Weight of item

0.03 kg
