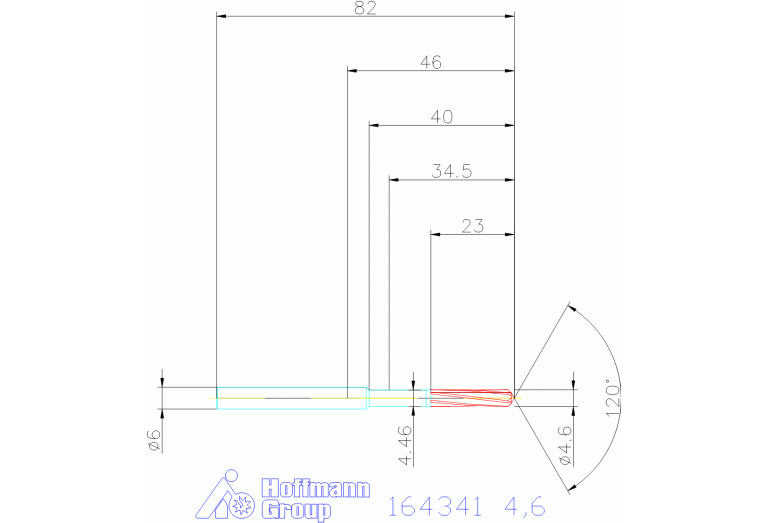

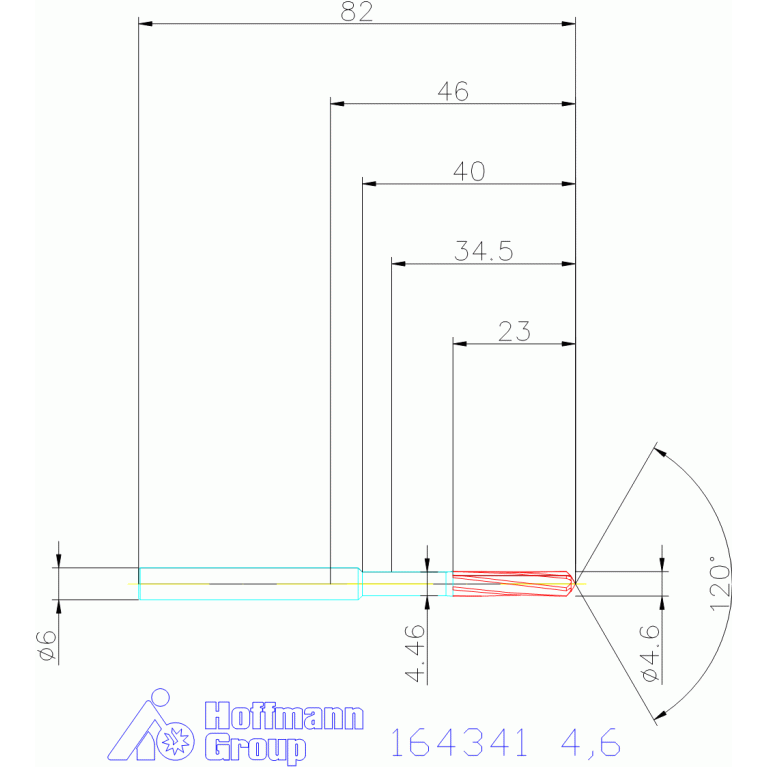

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer 164341 4,6

164341 4,6

Артикул: 164341 4,6

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

23 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00600105

FamilyProducts

GARANT Solid carbide NC machine chucking reamer H7

FHA Flute helix angle

7 Degree

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

46 mm

LS Shank length

36 mm

LU Usable length

34.5 mm

Name Identifying order number

164341 4,6

NOF Flute count

OAL Overall length

82 mm

PLANG Plug angle

PLGL Plug length

0.4 mm

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.025 kg
