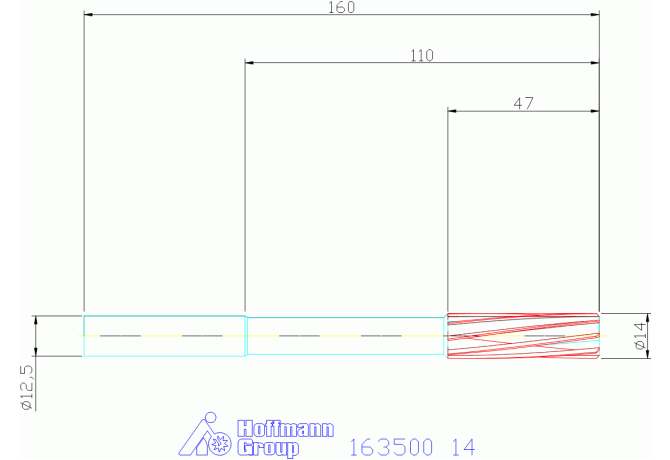

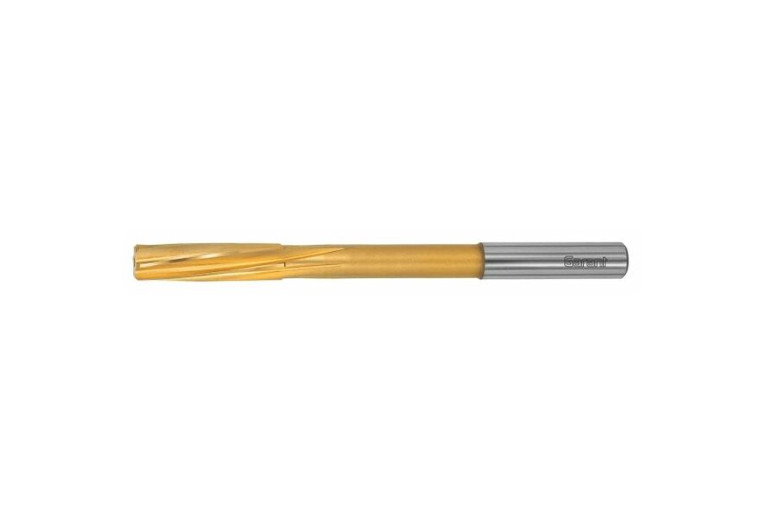

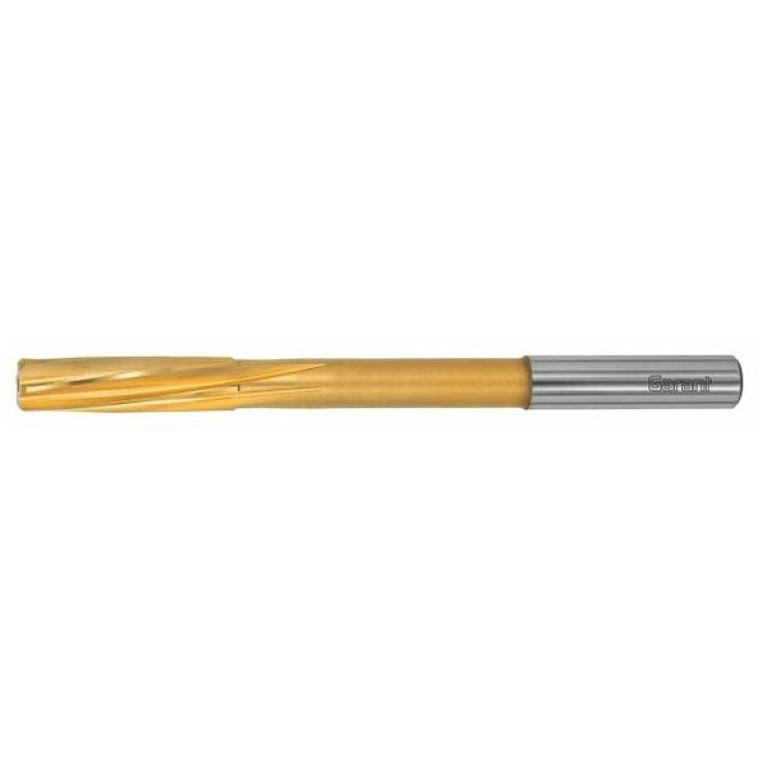

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer 163500 14

163500 14

Артикул: 163500 14

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

47 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01250105

FamilyProducts

GARANT Machine chucking reamer H7

FHA Flute helix angle

8 Degree

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSS-E TiN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

12.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250105

LPR Protruding length

110 mm

LU Usable length

103 mm

Name Identifying order number

163500 14

NOF Flute count

OAL Overall length

160 mm

PLANG Plug angle

PLGL Plug length

0.9 mm

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.14 kg
