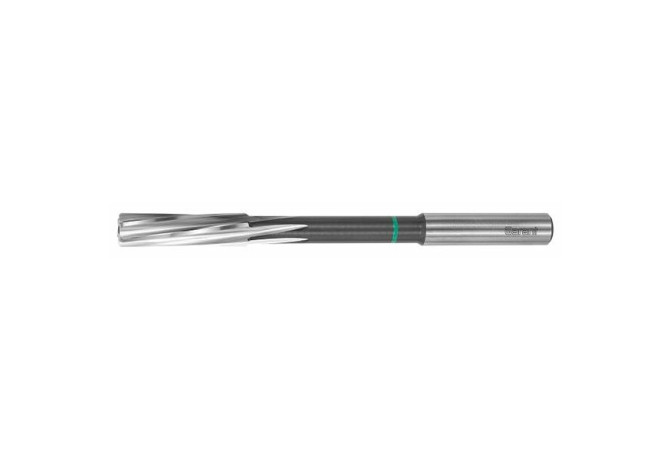

Главная Каталог продукции Toolunited 15 311-01 - Solid cylindrical reamer 162900 9,5

162900 9,5

Артикул: 162900 9,5

В наличии

В корзину

Описание

Характеристики

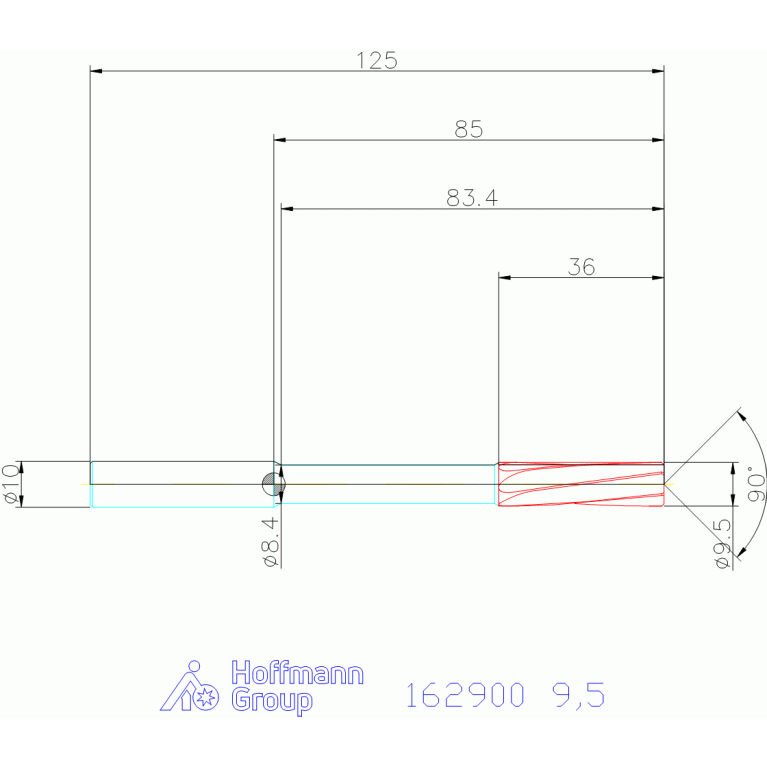

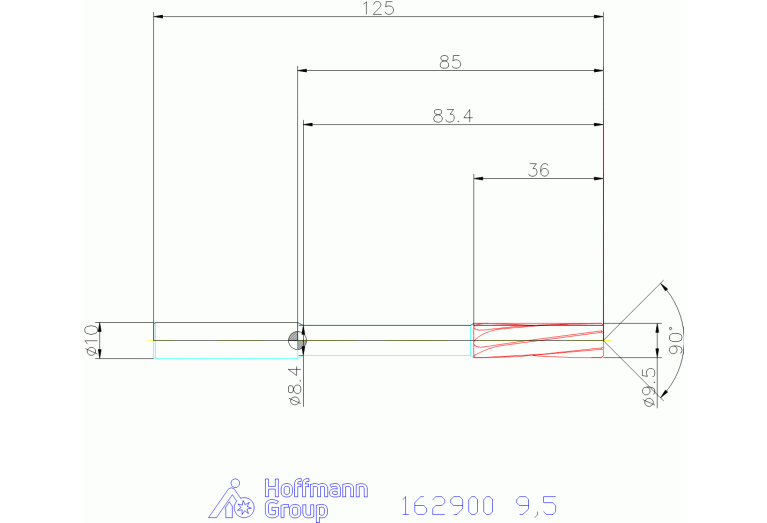

APMX Depth of cut maximum

36 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01000105

FamilyProducts

GARANT NC reamer H7

FHA Flute helix angle

8 Degree

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

85 mm

LS Shank length

40 mm

LU Usable length

83.4 mm

Name Identifying order number

162900 9,5

NOF Flute count

OAL Overall length

125 mm

PLANG Plug angle

PLGL Plug length

0.5 mm

TCDCONMS ISO-tolerance class shank diameter

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.058 kg
