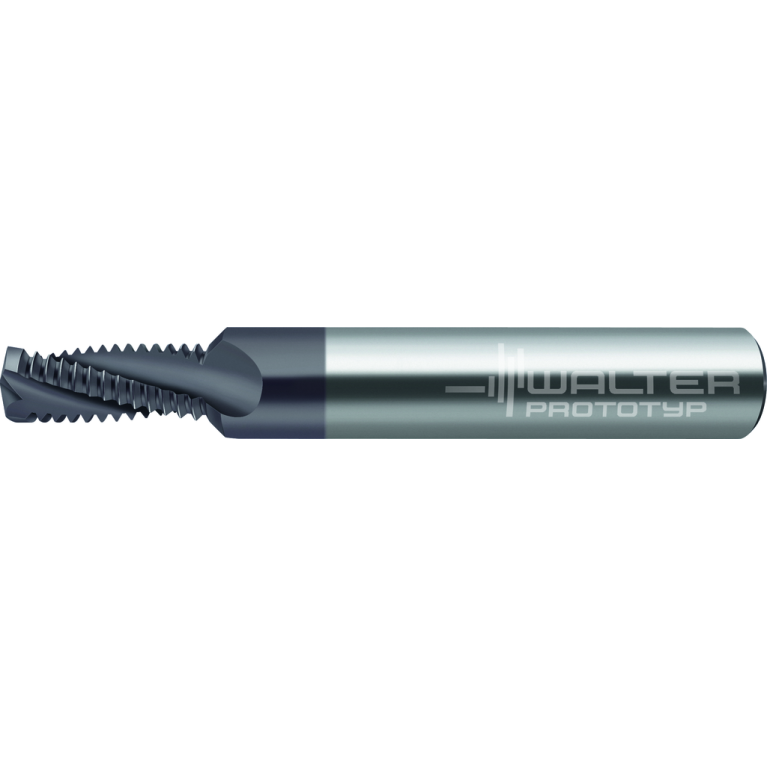

Главная Каталог продукции Toolunited 15 303-11 - Thread end mill with drilling part H5075011-M6

H5075011-M6

H5075011-M6 H5075011-M6 H5075011-M6

H5075011-M6

Walter
Артикул: 5910479
В наличии
В корзину
Описание
Характеристики

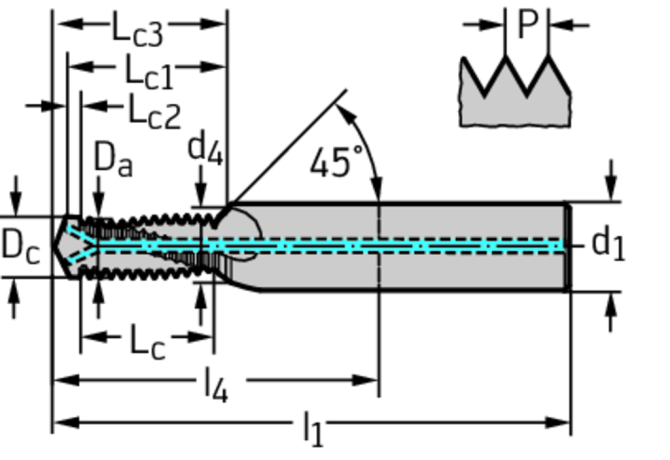

APMX Depth of cut maximum
11 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
NHC
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
4.75 mm
Delivery state valid from
12/1/2023
DIN
ZYL00800115
FamilyProducts
Solid carbide drill thread milling cutters
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
1.5 Degree
GRDMFG Grade manufacturers designation
NHC
HAND Cutting direction
R - Right
ID Technical product number
5910479
Interface codes
J6 / J61
ISO
ZYL01F8000h$06
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
61.14 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01F8000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800115
LPR Protruding length
26 mm
LS Shank length
36 mm
Materials
N
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
H5075011-M6
OAL Overall length
62 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
DIN6535
TCDCONMS ISO-tolerance class shank diameter
h6
THFT Thread form type
M
TP Thread pitch
1 mm
Working process
BVB - Drilling,FPR - Profile milling,FSC - Thread milling
WT Weight of item
0.039 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
