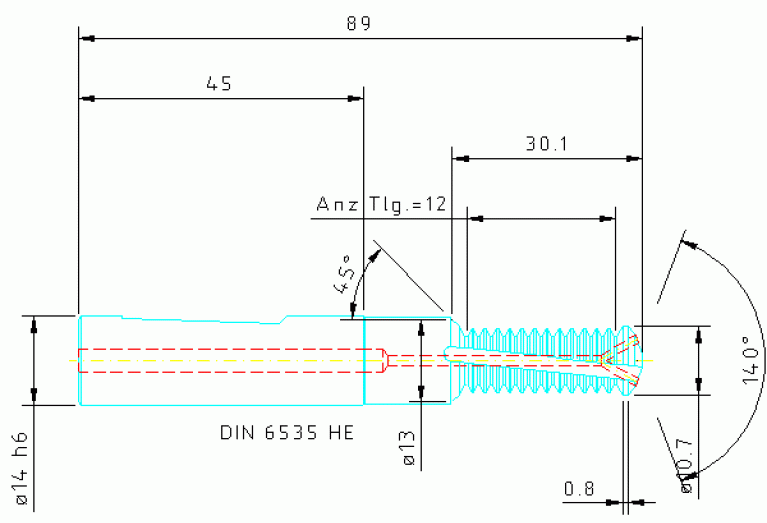

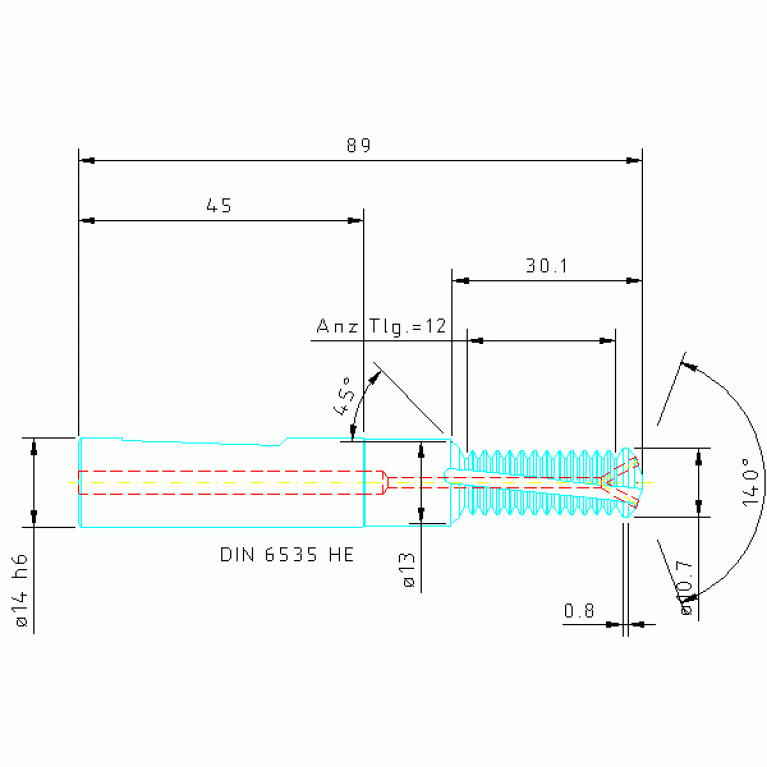

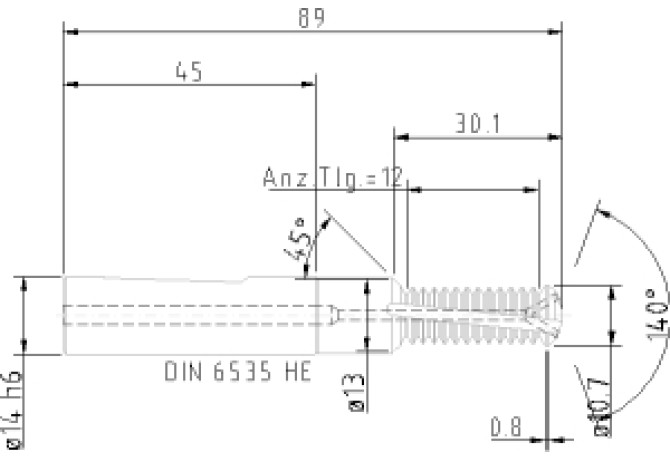

Главная Каталог продукции Toolunited 15 303-11 - Thread end mill with drilling part 80641010000015

80641010000015

80641010000015 80641010000015 80641010000015

80641010000015

Komet Group
Артикул: 1499865
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
30.07 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCD Drilling diameter
10.8 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
10.75 mm
Delivery state valid from
4/24/2012
DIN
ZYL01401315
DN Neck diameter
13.5 mm
FamilyProducts
Bohrgewindefräser
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM, blank
HAND Cutting direction
R - Right
ID Technical product number
1499865
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01401315
LPR Protruding length
44 mm
LS Shank length
45 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
80641010000015
OAL Overall length
89 mm
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNC
TPI Threads per inch
13 1/in
Working process
No working processes available
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
