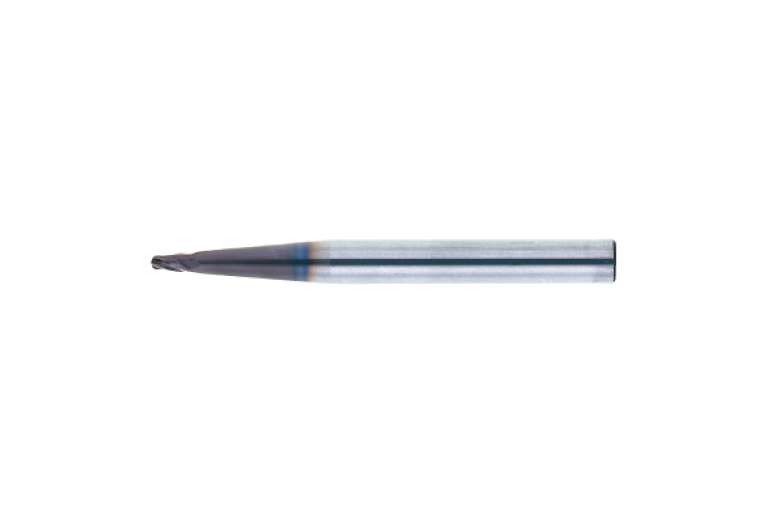

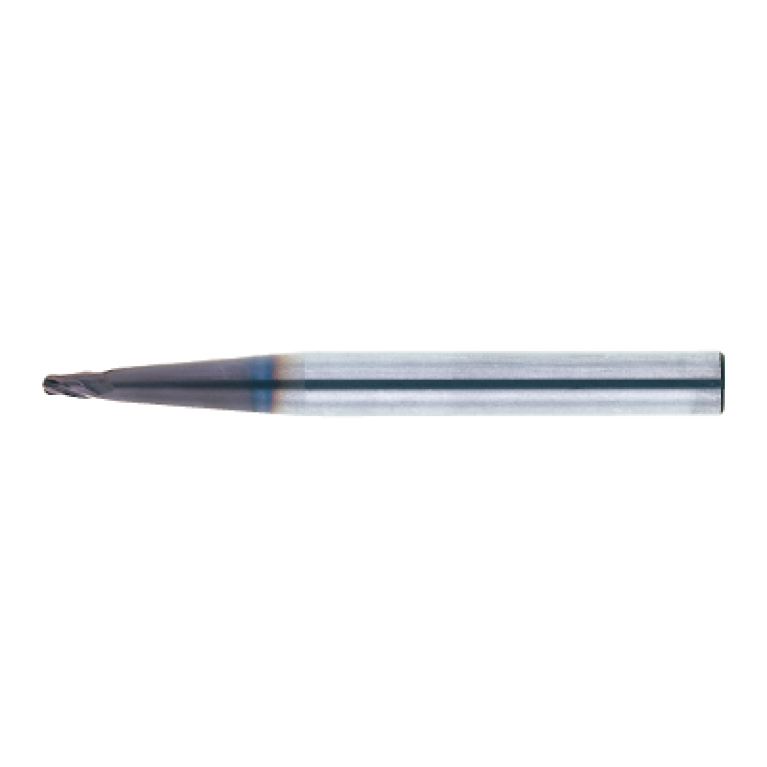

Главная Каталог продукции Toolunited 15 303-07 - Die end mill VC4STBR0100T0500N10

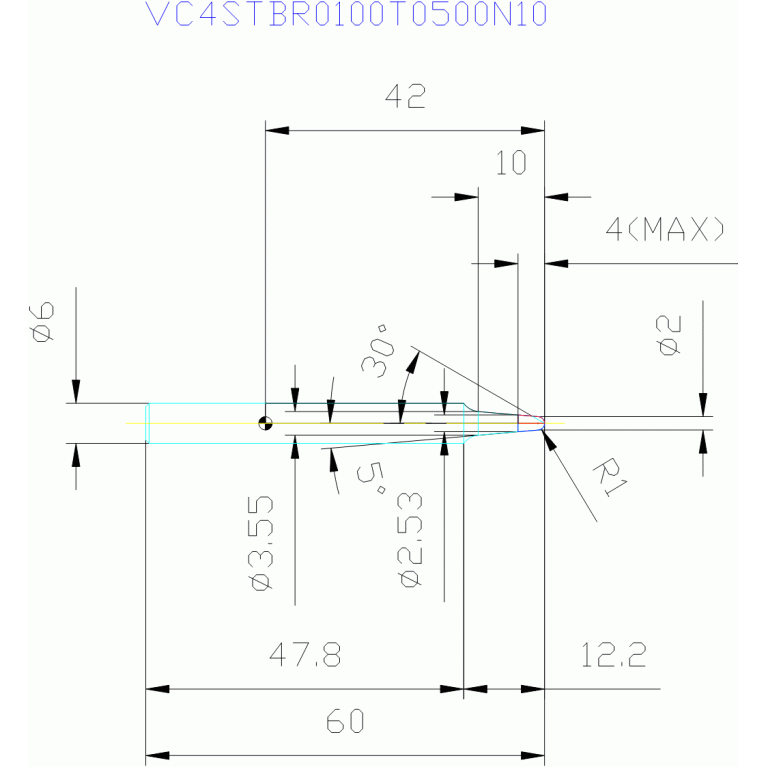

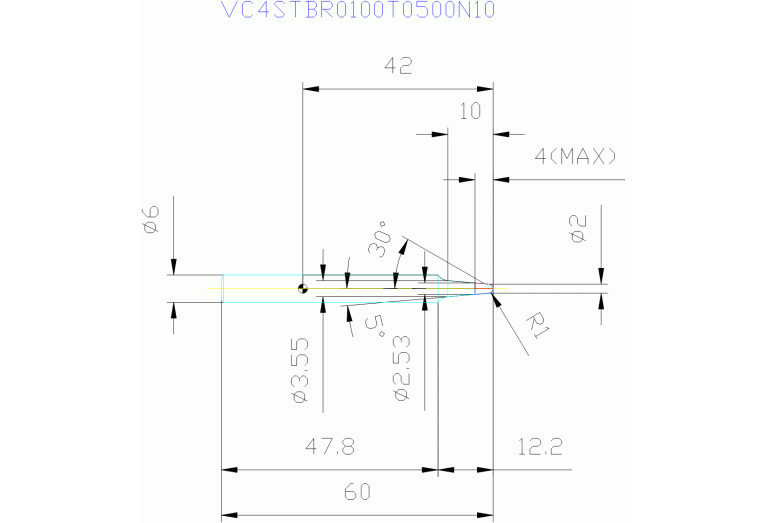

VC4STBR0100T0500N10

Артикул: 207319

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4 mm

BD Body diameter

3.55 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

2.53 mm

Delivery state valid from

12/1/2024

DIN

ZYL00600105

FamilyProducts

Carbide Ball nose taper end mill, Short cut length 4 flute

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

207319

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-07 - Die end mill

LF Functional length

60 mm

LH Head length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

42 mm

LS Shank length

47.8 mm

LU Usable length

10 mm

Name Identifying order number

VC4STBR0100T0500N10

OAL Overall length

60 mm

PRFA Profile included angle

10 Degree

PRFRAD Profile radius 1

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FPR - Profile milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
