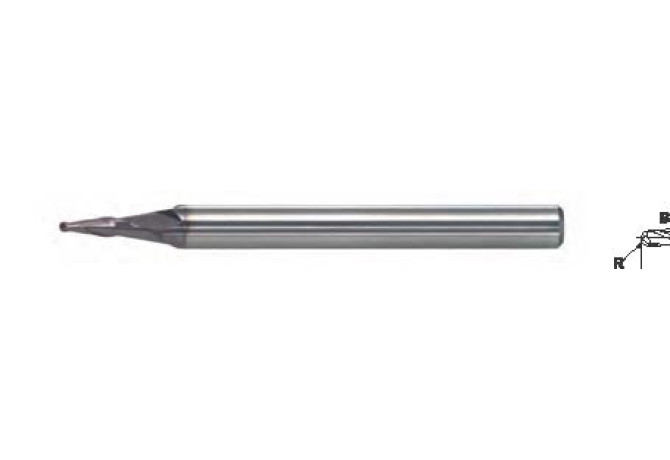

Главная Каталог продукции Toolunited 15 303-07 - Die end mill MS2MTBR0030T0300

MS2MTBR0030T0300

Артикул: 216899

В наличии

В корзину

Описание

Характеристики

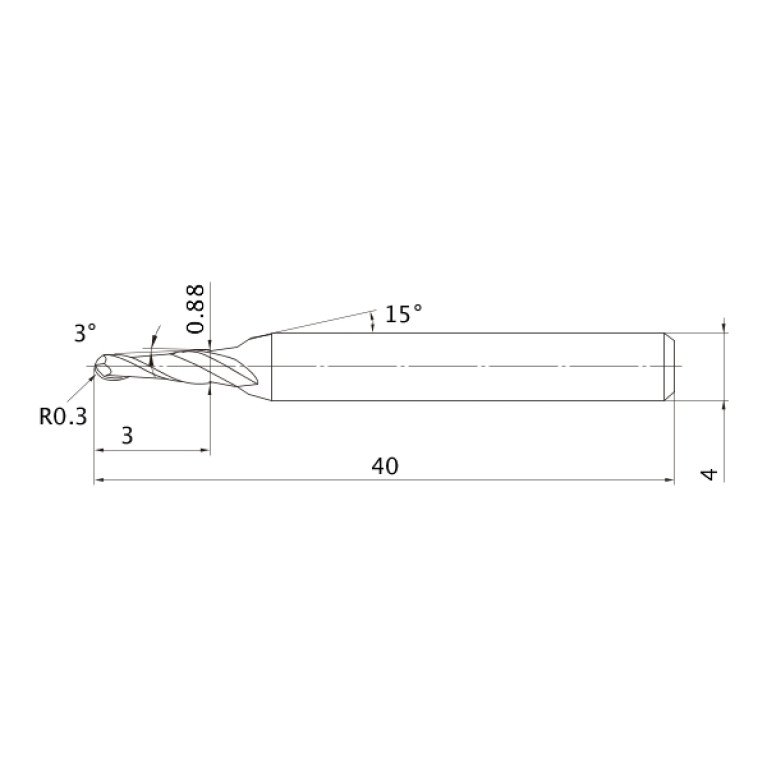

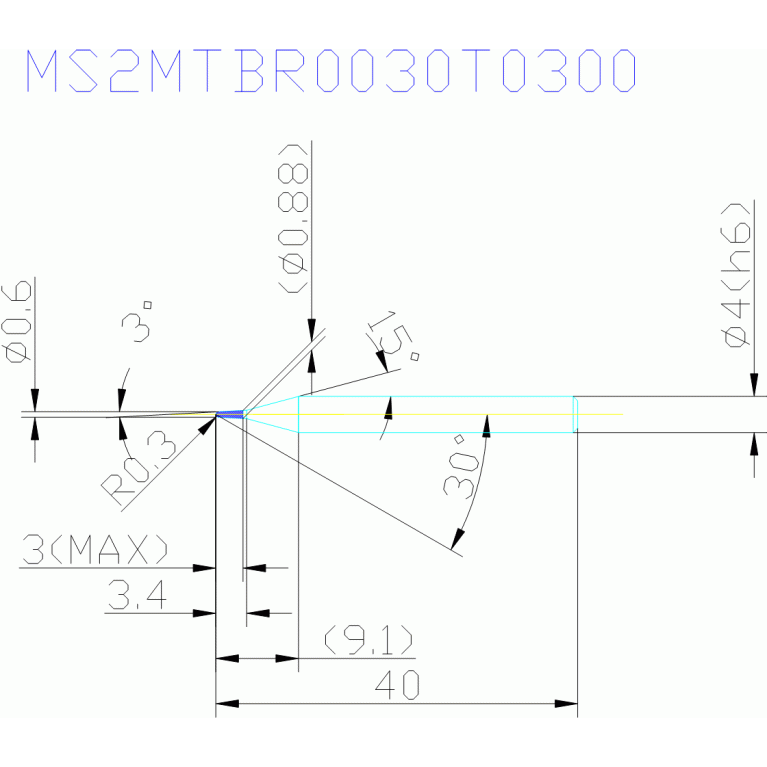

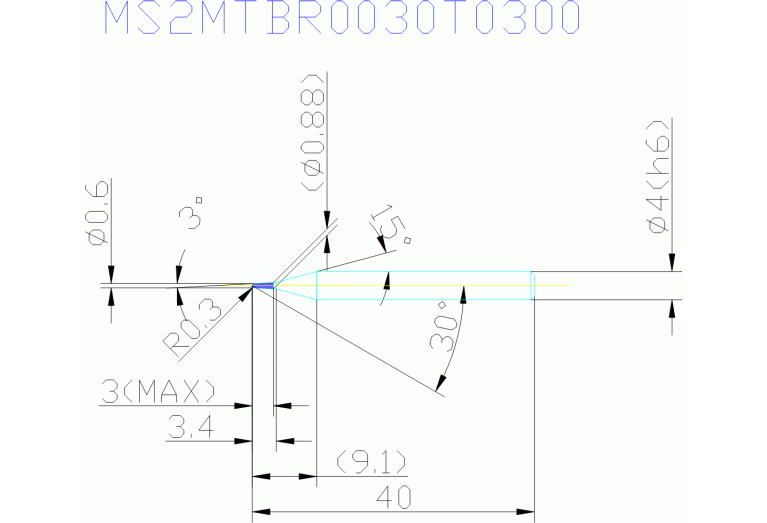

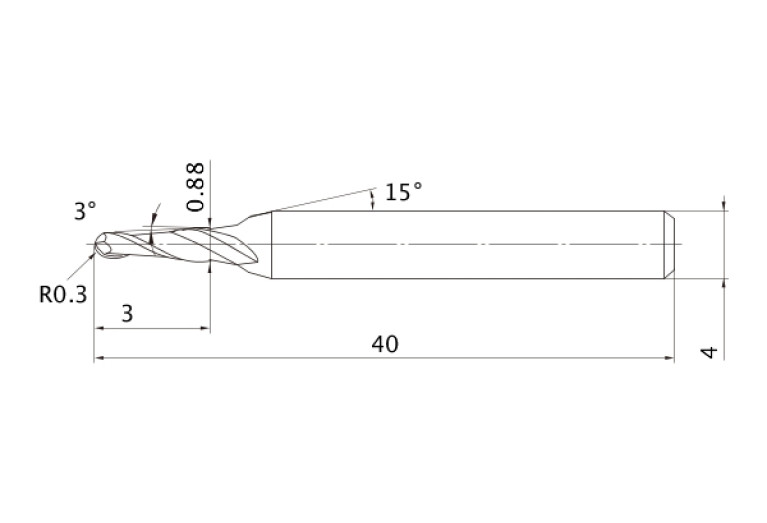

APMX Depth of cut maximum

3 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.6 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

0.88 mm

Delivery state valid from

4/1/2022

DIN

ZYL00400105

FamilyProducts

Ball nose taper,Long cut length,2 flute

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

216899

Interface codes

J6 /

ISYC Subclass

303-07 - Die end mill

LF Functional length

40 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

Materials

P,H

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

MS2MTBR0030T0300

OAL Overall length

40 mm

PRFRAD Profile radius 1

0.3 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
