Главная Каталог продукции Toolunited 15 303-07 - Die end mill F2AL1600M1030 KC637M

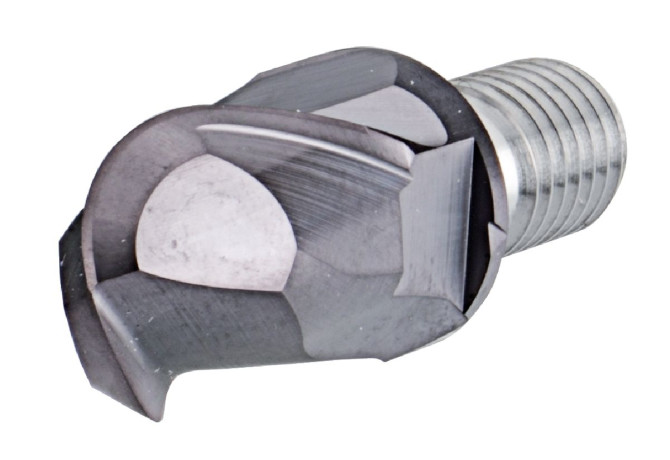

F2AL1600M1030 KC637M

Артикул: 2391396

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

FamilyProducts

F2AL-MODULAR-SCREW-ON-HEAD

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

KC637M

HAND Cutting direction

R - Right

ID Technical product number

2391396

Interface codes

ISYC Subclass

303-07 - Die end mill

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

26 mm

LS Shank length

19 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

F2AL1600M1030 KC637M

OAL Overall length

45 mm

PRFRAD Profile radius 1

8 mm

THSZMS Connection thread nominal size machine side

M10

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
