Главная Каталог продукции Toolunited 15 303-09 - Thread end mill STMHC04039L07-I0.80ISO PC9070M

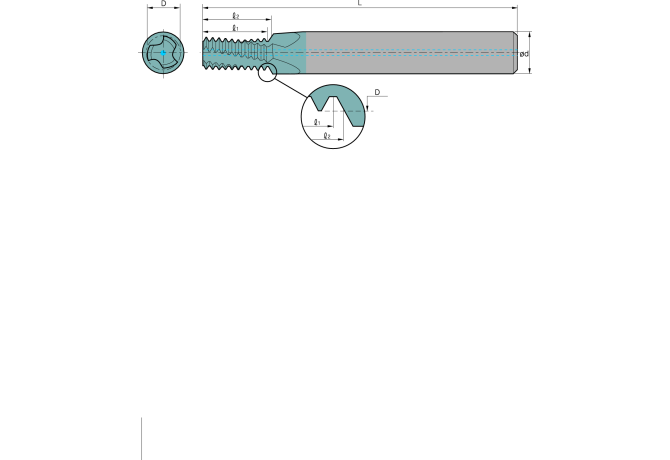

STMHC04039L07-I0.80ISO PC9070M

STMHC04039L07-I0.80ISO PC9070M STMHC04039L07-I0.80ISO PC9070M

STMHC04039L07-I0.80ISO PC9070M

Korloy
Артикул: 6-01-016541
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
7.6 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL00400115
FamilyProducts
ISO Metric - Helical Flutes with Thru-Hole Coolant
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
PC9070M
HAND Cutting direction
R - Right
ID Technical product number
6-01-016541
Interface codes
J6 /
ISYC Subclass
303-09 - Thread end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00400115
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
STMHC04039L07-I0.80ISO PC9070M
OAL Overall length
45 mm
THFT Thread form type
M
TP Thread pitch
0.8 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
3
