Главная Каталог продукции Toolunited 15 303-09 - Thread end mill H5336016-UNJF7/16

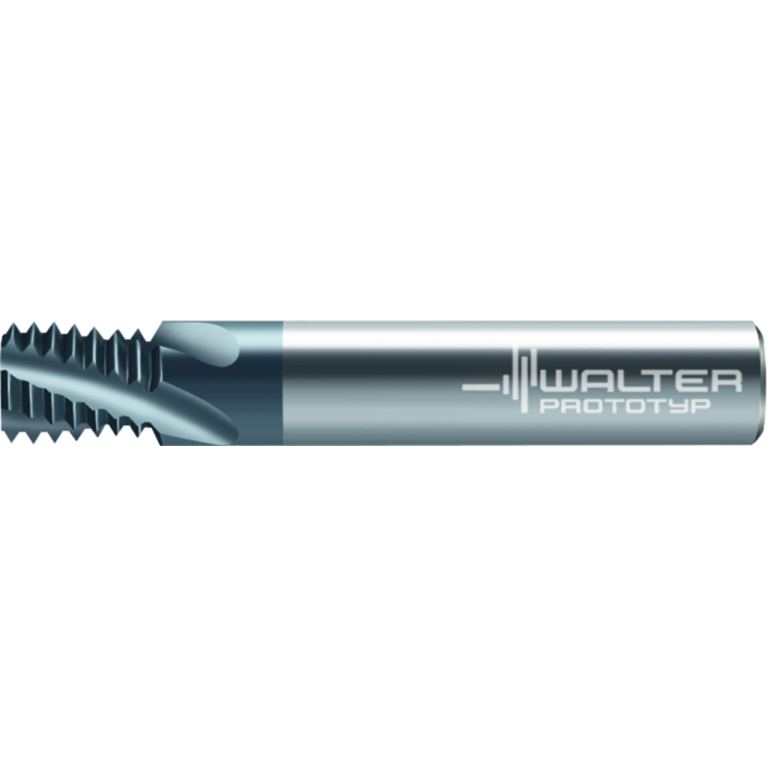

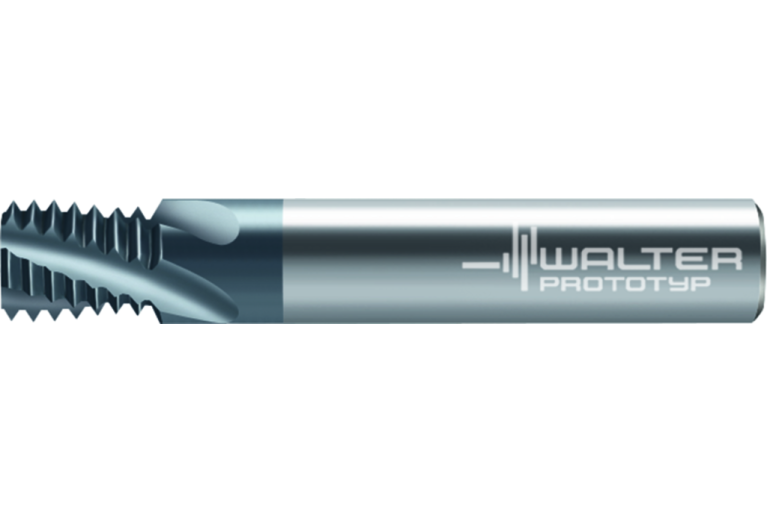

H5336016-UNJF7/16

H5336016-UNJF7/16 H5336016-UNJF7/16 H5336016-UNJF7/16

H5336016-UNJF7/16

Walter
Артикул: 5115538
В наличии
В корзину
Описание
Характеристики

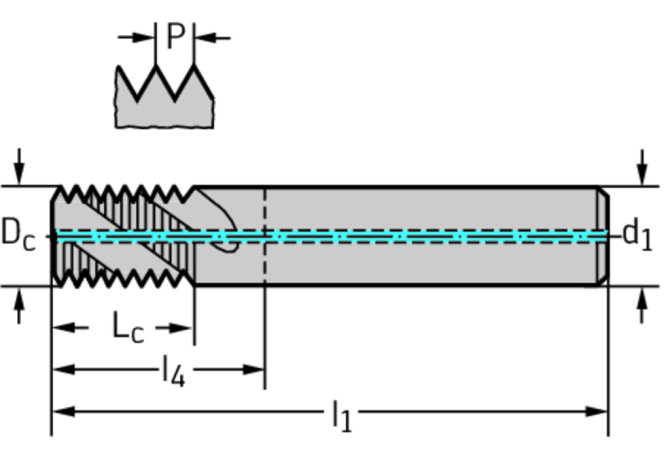

APMX Depth of cut maximum
17.78 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
9.2 mm
Delivery state valid from
12/1/2023
DIN
ZYL01000115
FamilyProducts
Solid carbide thread milling cutters
FHA Flute helix angle
27 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
7.5 Degree
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
5115538
Interface codes
J6 / J61
ISO
ZYL01G1000h$06
ISYC Subclass
303-09 - Thread end mill
LF Functional length
72 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01G1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000115
LPR Protruding length
26 mm
LS Shank length
40 mm
Materials
P,M,N,S,O
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
H5336016-UNJF7/16
OAL Overall length
72 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
TCDCONMS ISO-tolerance class shank diameter
h6
THFT Thread form type
NJ60
TPI Threads per inch
20 1/in
Working process
FSC - Thread milling
WT Weight of item
0.072 kg
ZEFP Peripheral effective cutting edge count
4
