Главная Каталог продукции Toolunited 15 303-09 - Thread end mill 80987001000015

80987001000015

Артикул: 1499805

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

3.14 mm

Delivery state valid from

4/24/2012

DIN

ZYL00601305

FamilyProducts

Gewindefräser

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM, TiAlN

HAND Cutting direction

R - Right

ID Technical product number

1499805

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601305

LPR Protruding length

10 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

80987001000015

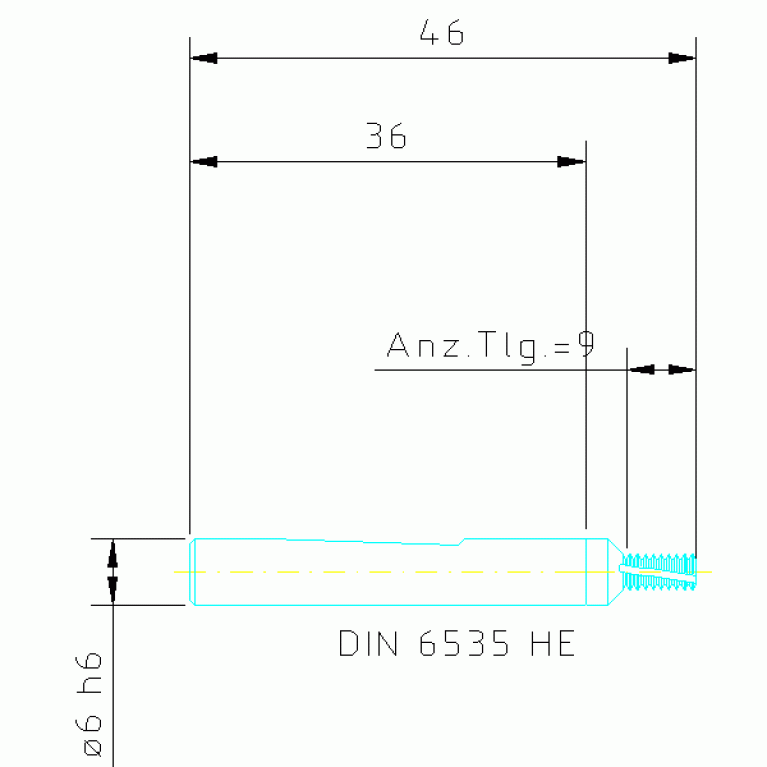

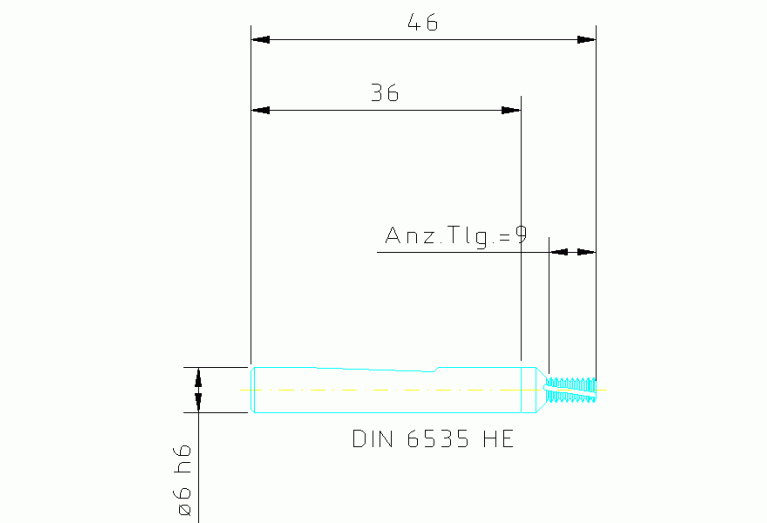

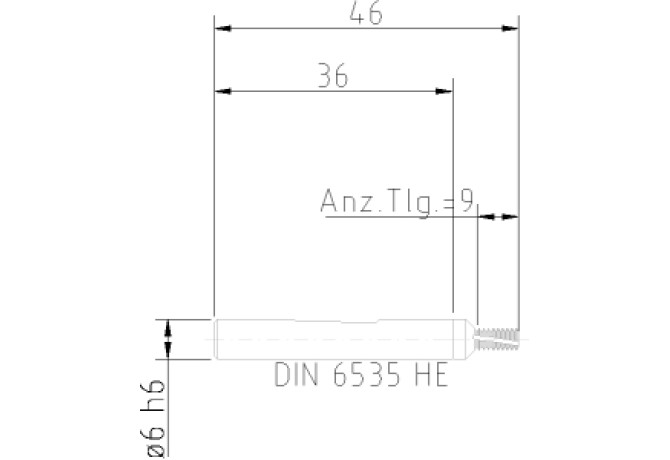

OAL Overall length

46 mm

TD Thread diameter

4 mm

THFT Thread form type

TP Thread pitch

0.7 mm

Working process

FZI - Circular milling

ZEFP Peripheral effective cutting edge count
