Главная Каталог продукции Toolunited 15 303-09 - Thread end mill 47Y-19WTQRA13 IN2005

47Y-19WTQRA13 IN2005

Артикул: 5812181

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5.3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10 mm

Delivery state

LA - Soon discontinued

DIN

SAI00500105

FamilyProducts

threading cutter W type

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5812181

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

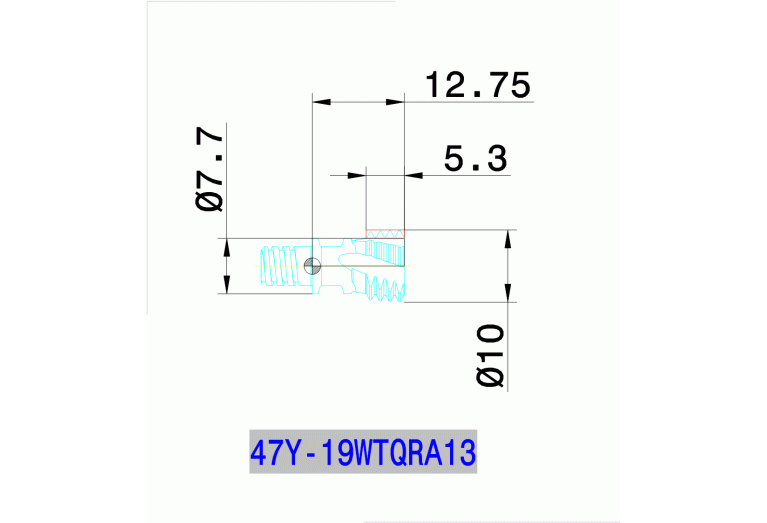

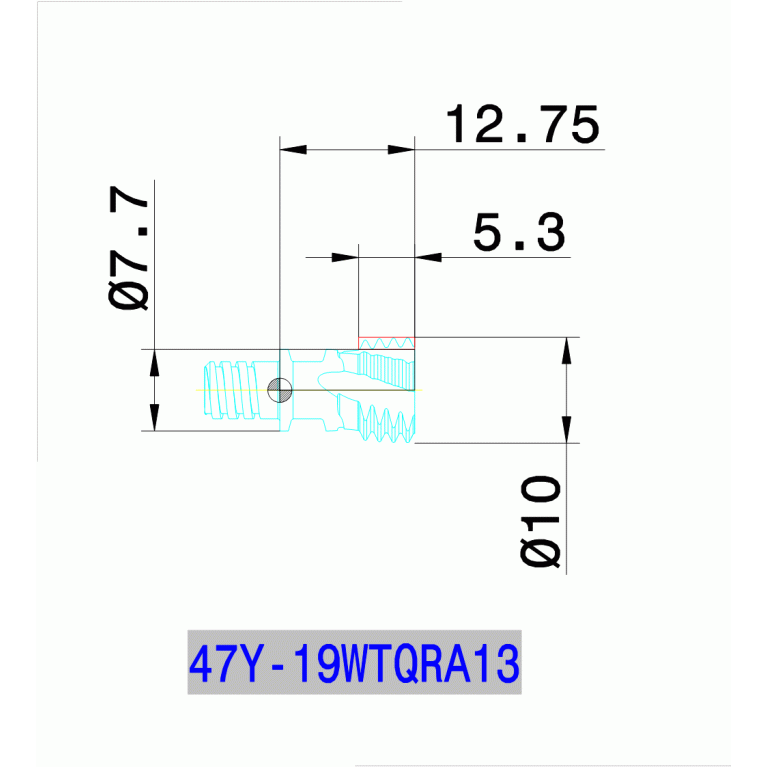

47Y-19WTQRA13 IN2005

OAL Overall length

19.85 mm

TDFR Thread diameter nominal fraction

G1/4 - 3/8 in

THFT Thread form type

BSP

THSZMS Connection thread nominal size machine side

TPI Threads per inch

19 1/in

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFP Peripheral effective cutting edge count
