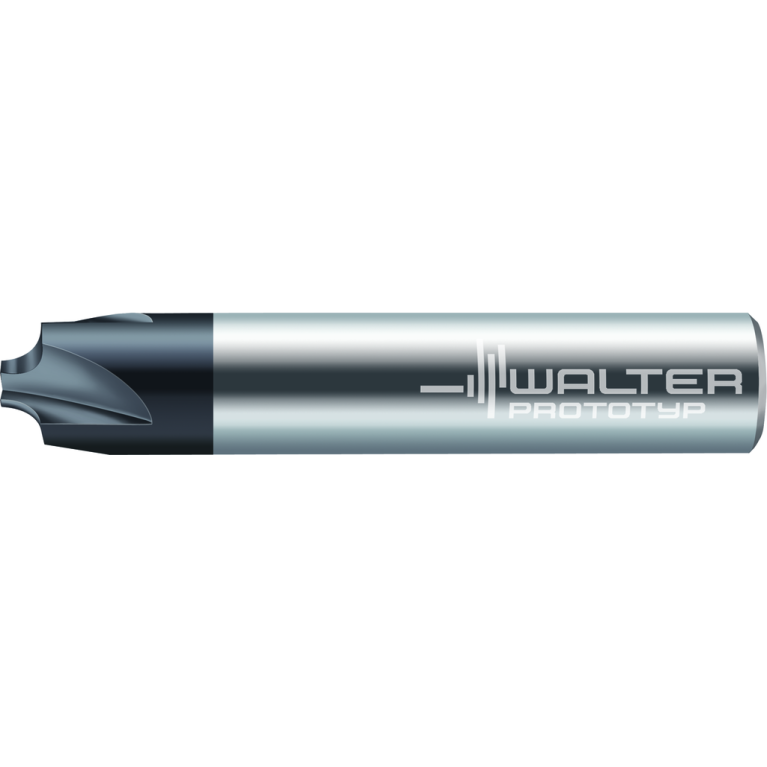

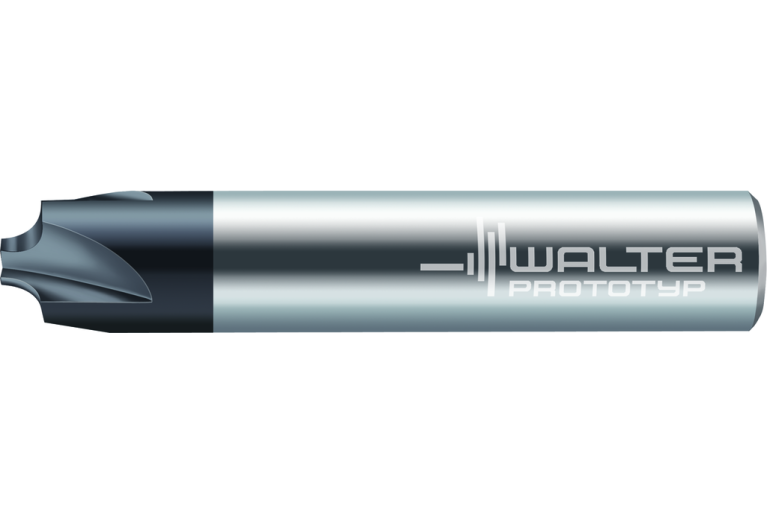

Главная Каталог продукции Toolunited 15 303-08 - Rounded profile end mill, concave AH3068118-1/4

AH3068118-1/4

Артикул: 5543819

В наличии

В корзину

Описание

Характеристики

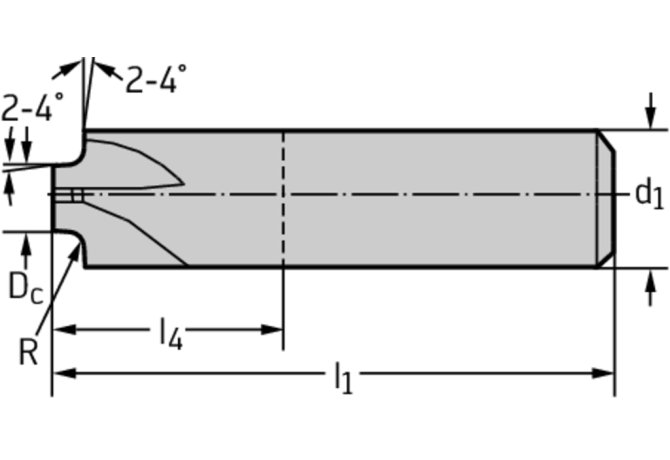

APMX Depth of cut maximum

6.35 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

11 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25.4 mm

Delivery state valid from

12/1/2023

DIN

ZYL10000125

FamilyProducts

Solid carbide quarter-round profiling cutters AH3068118

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

1.5 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

TAX

HAND Cutting direction

R - Right

ID Technical product number

5543819

Interface codes

J6 / J61

ISO

ZYL01S1000h$06

ISYC Subclass

303-08 - Rounded profile end mill, concave

LF Functional length

101.6 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01S1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000125

LPR Protruding length

43.6 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

AH3068118-1/4

OAL Overall length

101.6 mm

PRFRAD Profile radius 1

6.35 mm

RPMX Rotational speed maximum

80000 1/min

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FPR - Profile milling

WT Weight of item

0.716 kg

ZEFP Peripheral effective cutting edge count
