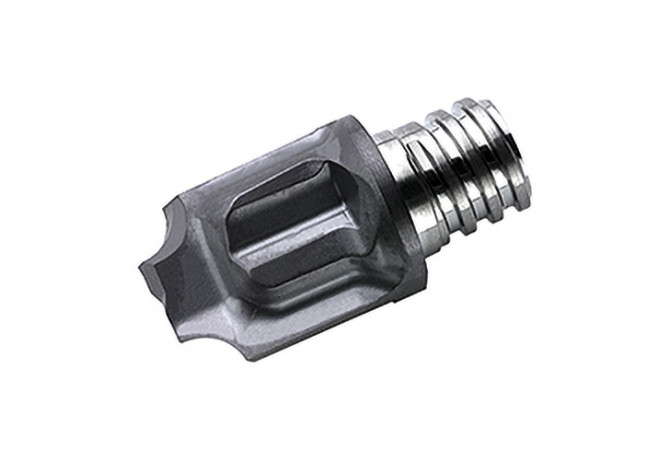

Главная Каталог продукции Toolunited 15 303-08 - Rounded profile end mill, concave 45R12012T8RA40 IN2005

45R12012T8RA40 IN2005

Артикул: 5840422

В наличии

В корзину

Описание

Характеристики

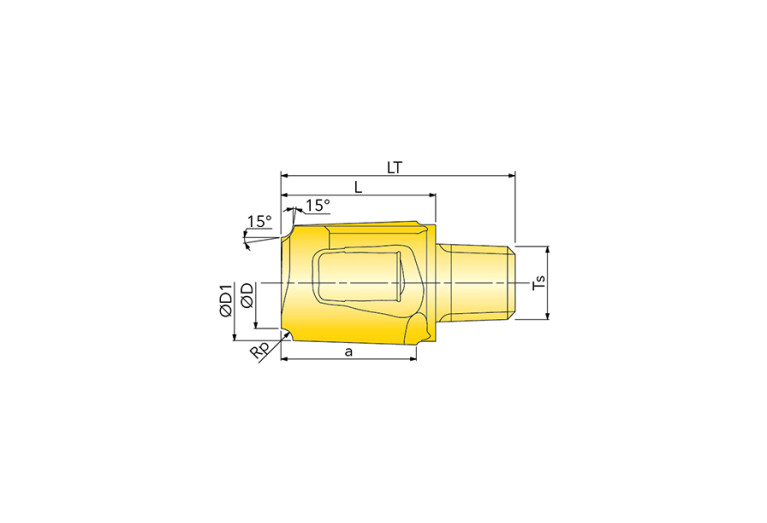

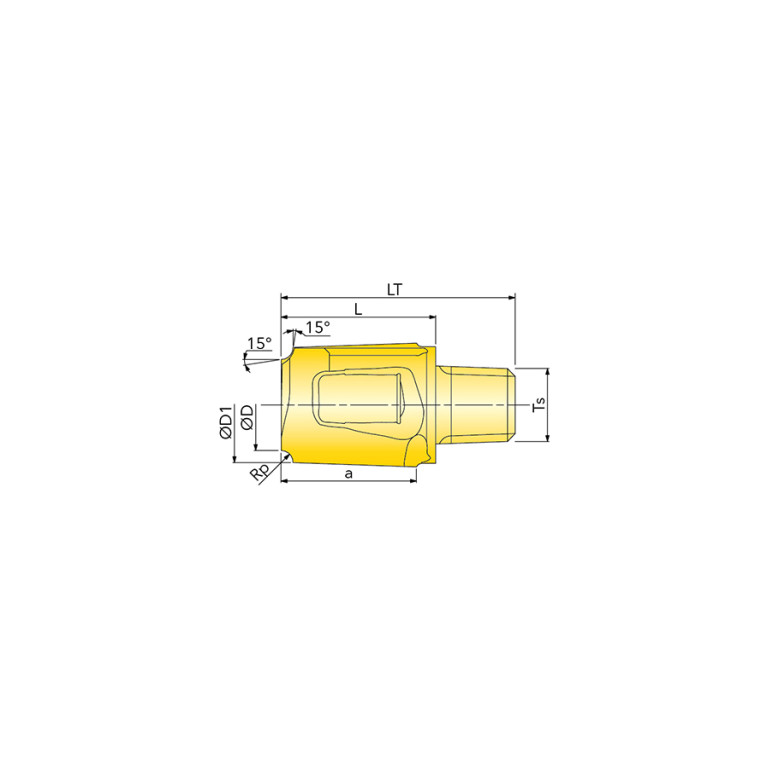

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4.7 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

12.7 mm

Delivery state

LA - Soon discontinued

DIN

SAI00800105

FamilyProducts

Concave radius milling cutter Z=2

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5840422

Interface codes

J6 /

ISYC Subclass

303-08 - Rounded profile end mill, concave

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800105

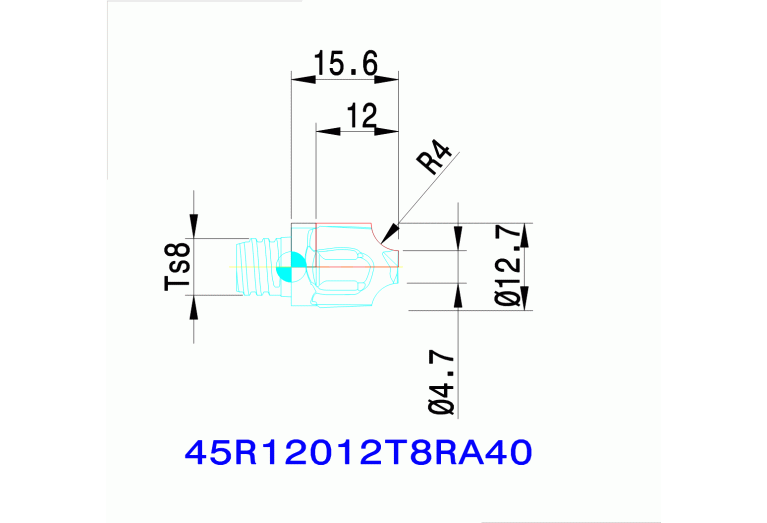

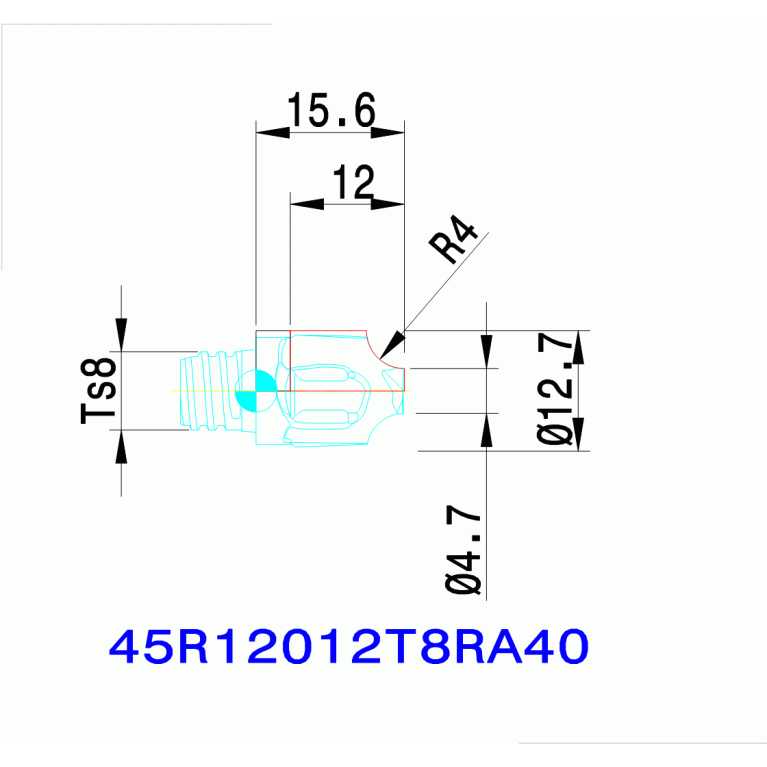

LPR Protruding length

15.6 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

45R12012T8RA40 IN2005

OAL Overall length

23.6 mm

PRFRAD Profile radius 1

4 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.017 kg

ZEFP Peripheral effective cutting edge count
