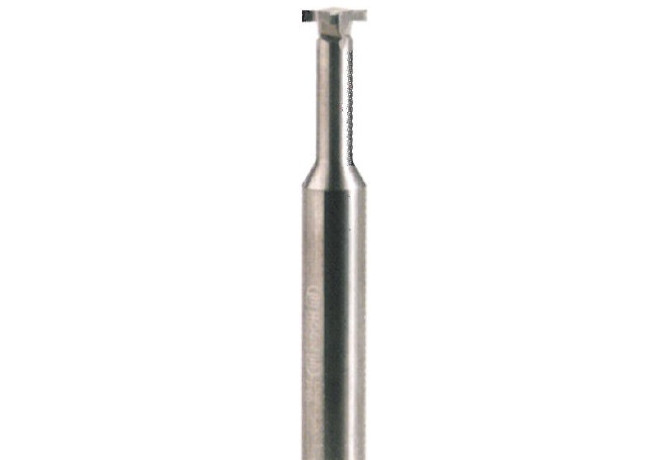

DCN.4.80.20.15.5.08 MG12

Артикул: DCN4802015508MG12

В наличии

В корзину

Описание

Характеристики

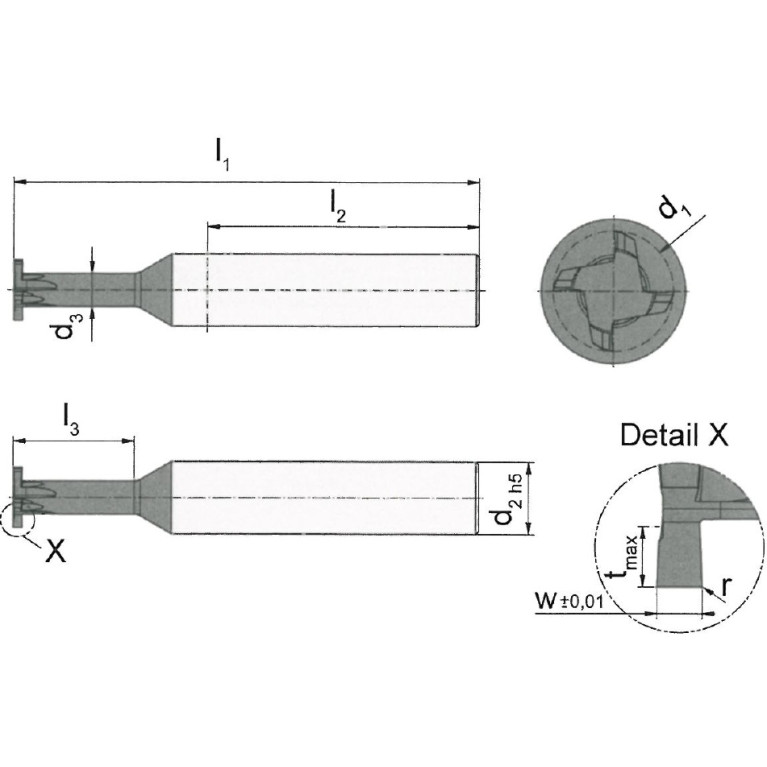

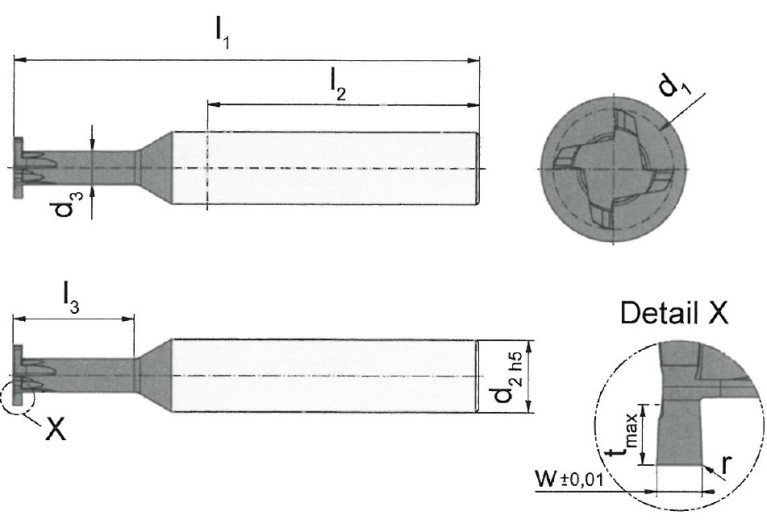

APMX Depth of cut maximum

2 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HORN - Paul Horn

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/15/2014

DIN

ZYL00800105

DN Neck diameter

4.6 mm

FamilyProducts

DC GROOVE ENDMILL

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HW-M15

GRD3RD Standard designation of the grade 3rd application

HW-K20

GRDMFG Grade manufacturers designation

MG12

GRDPRIO Standard designation of the grade main application

HW-P25

HAND Cutting direction

R - Right

ID Technical product number

DCN4802015508MG12

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LN Neck length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

16 mm

LS Shank length

50 mm

Name Identifying order number

DCN.4.80.20.15.5.08 MG12

OAL Overall length

63 mm

RE Corner radius

0.15 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
