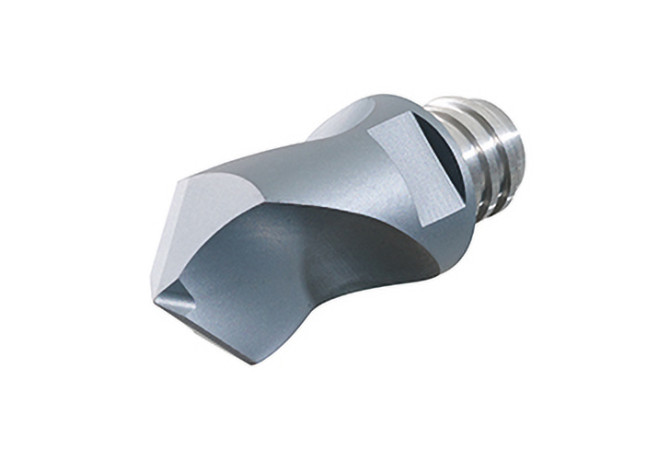

Главная Каталог продукции Toolunited 15 302-06 - Spot drill 45Z08004TQRA45 IN2005

45Z08004TQRA45 IN2005

Артикул: 3759803

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00500105

FamilyProducts

NC Center Drill

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

3759803

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

LPR Protruding length

15 mm

Name Identifying order number

45Z08004TQRA45 IN2005

NOF Flute count

OAL Overall length

22.1 mm

SIG Point angle 1st step

90 Degree

THSZMS Connection thread nominal size machine side

Working process

BVB - Drilling

WT Weight of item

0.005 kg
