Главная Каталог продукции Toolunited 15 303-00 - End mill unspecified MM HT120N06R4.0-2T08 IC903

MM HT120N06R4.0-2T08 IC903

MM HT120N06R4.0-2T08 IC903

MM HT120N06R4.0-2T08 IC903

Iscar
Артикул: 5606431
В наличии
В корзину
Описание
Характеристики

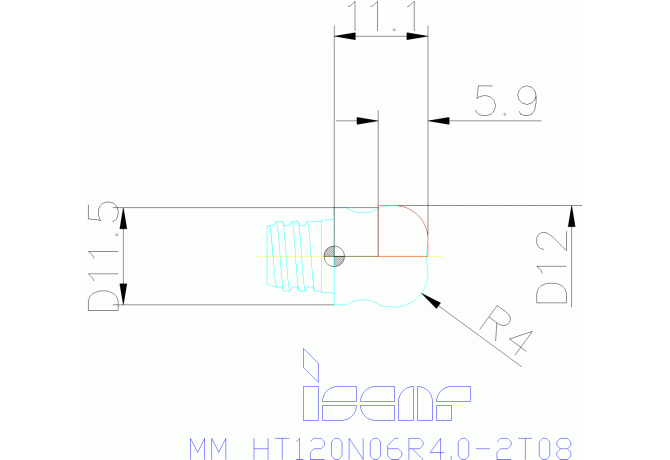

APMX Depth of cut maximum
5.9 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
SAI00800105
DN Neck diameter
11.5 mm
FamilyProducts
MM HT120N06R4.0-2T08
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
IC903
HAND Cutting direction
R - Right
ID Technical product number
5606431
Interface codes
J6 / J61
ISO
SAI01F8000$$$$
ISYC Subclass
303-00 - End mill unspecified
LF Functional length
11.1 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 ISO
SAI01F8000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI00800105
LPR Protruding length
11.1 mm
Name Identifying order number
MM HT120N06R4.0-2T08 IC903
RE Corner radius
4 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
