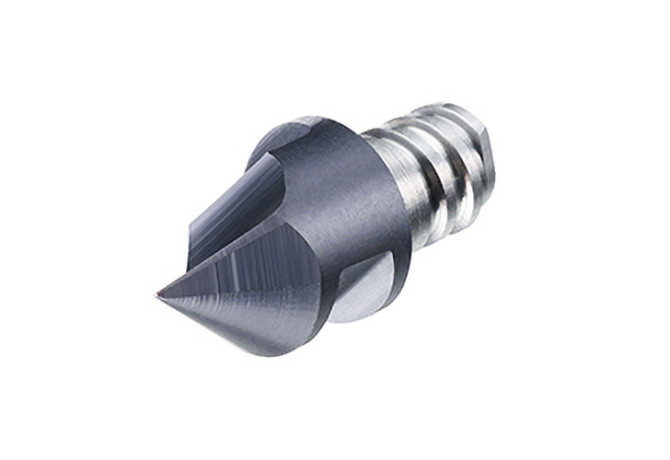

Главная Каталог продукции Toolunited 15 303-00 - End mill unspecified 45Q00810TQRA30 IN2005

45Q00810TQRA30 IN2005

Артикул: 2928034

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00500105

FamilyProducts

Engraving cutter 45°/60°/90°

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

2928034

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

Name Identifying order number

45Q00810TQRA30 IN2005

OAL Overall length

17.1 mm

RE Corner radius

0.2 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.005 kg

ZEFP Peripheral effective cutting edge count
